HYDRECO齒輪泵QX5系列技術參數
Speed Range | All models 450 - 3000 rev/min |
Temperature | |
Minimum at start-up | -40oC (-40oF) |
Maximum continuous | +80oC (+176oF) |
Maximum intermittent | +100oC (+212oF) |
Viscosity | |
Maximum at start-up | 2000 mm2/sec (9,000 SSU) |
Maximum continuous | 250 mm2/sec (1150 SSU) |
Minimum continuous | 10 mm2/sec (60 SSU) |
Optimum | 15-25 mm2/sec (78-124 SSU) |
Fluid Cleanliness | |
To ISO4406 solid contaminant | |
Start-up period | 21/17 |
Maximum in service | 19/15 |
Optimum | 16/11 |
Maximum water | 0.001 |
Fluid Velocity | |
Maximum in INLET line | 2.5 m/sec (8 ft/sec) |
Recommended in INLET line | 1.5 m/sec (5 ft/sec) |
Shaft Loads Maximum axial load | 250 N (56 lb) |
Maximum radial load | 500 N (112 lb) |
Rotation | Clockwise or Anti-clockwise viewed from shaft end (not reversible). |
HYDRECO齒輪泵QX5系列介紹
QX 泵使用斜齒輪，旨在減少泵產生并傳輸到液壓系統的流體噪聲。 這會減少機器發出的空氣噪音。
QX 泵效率高，設計用于在下列參數范圍內運行時提供高性能水平和較長的使用壽命。
QX pumps use helical gears and are designed to reduce the amount of fluid borne noise generated by the pump and hence transmitted into the hydraulic system. This results in a reduction in the amount of airborne noise emitted from the machine.
QX pumps are highly efficient and are designed to provide high performance levels and long life when operated within the parameters shown below.

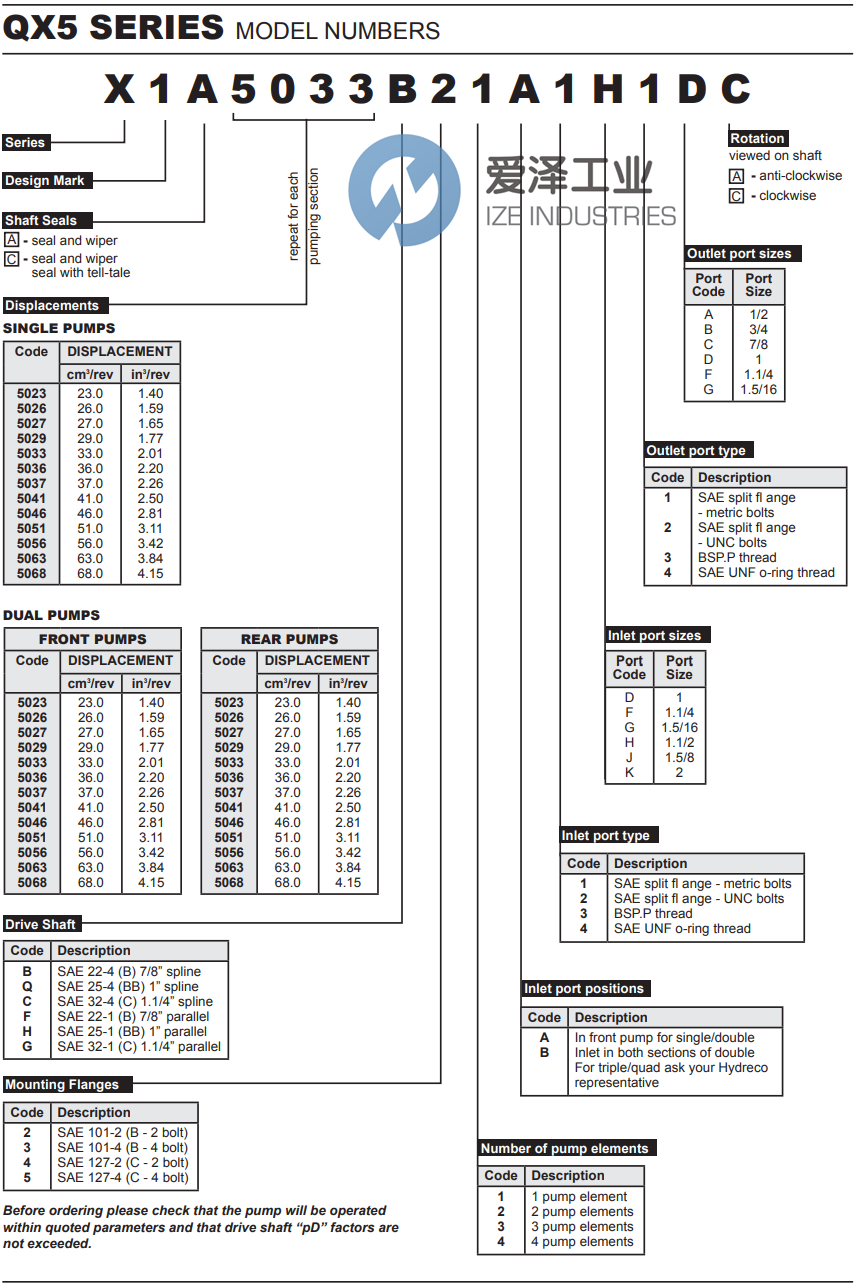

HYDRECO齒輪泵QX5系列選型
HYDRECO齒輪泵QX5系列其他常用型號：
HYDRECO X1A5-5-5-5-134411-C
HYDRECO X1A5-5-5-184903-2C
HYDRECO X1A5-5-5-184903-2C
HYDRECO X1A5-5-5-5/134403/1C
HYDRECO X1A5-5-5-5/134403/1C
HYDRECO X1A5-5-5-5-124013-1C
HYDRECO X1A5-5-5-5-124013-1C
HYDRECO X1A5-5-5/114728/1C
HYDRECO X1A5-5-5-147321-1C
HYDRECO X1A5-5-5-147321-1C
HYDRECO X1A5-5-5-155108-3C
HYDRECO X1A5-5-5-155108-3C
HYDRECO X1A5-5-5-114730-1C
HYDRECO X1A5-5-5-5-134427-2C

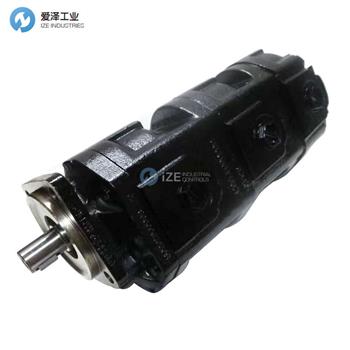

HYDRECO X1A5-5-147329-1C
HYDRECO GEAR PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDRECO齒輪泵X1A5-5-147329-1C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDRECO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
HYDRECO齒輪泵QX5系列X1A5-5-147329-1C技術參數及選型
