REKA噴涂系統TR80 LCD/230V技術參數
Weight applicator | 1200 g |
Power connection | 230 V (50 Hz), 2,8 A |
Power consumption | 230 V: 650 Watt |
Protection class | I, IP 30 |
Temperature control, display | Electronic, digital |
Temperature limitation | Temperature monitor |
Operating temperature | 50 – 210 °C (on request: max. 250 °C) |
Temperature constancy | ± 2 °C |
Heat-up time | ca. 3 – 10 min. |
Gross capacity | 310 ml |
Conveyor system | Air pressure |
Operating pressure | 0,5 – 6 bar |
Length of connections (stand to handgun) | 4,5 m |
Length of electrical connection | 4 m |
Length connection set | 3 m |
Stand with pressure regulator + manometer | yes |
Recommended melting goods | Hot-melts in 310 ml aluminium cartridges |
REKA噴涂系統TR80 LCD系列產品介紹
TR 80 LCD 是一種熱熔膠噴涂系統。 噴涂應用是一種非接觸式涂膠，這意味著它可以很容易地涂在即將粘合的材料上。 此外，噴涂應用可以覆蓋大面積并使用很少的膠水。 帶有內置壓力調節器和壓力計的存儲支架是系統的一部分，并永久連接到膠槍 TR 80 LCD，因此設置正確的膠水輸出和噴涂模式變得非常容易。 熱熔膠是通過氣壓擠出的。 噴涂系統可提高工作速度并簡化膠水的精確計量。 由于內置電子溫度調節，膠槍可在 3-10 分鐘內準備好工作。 此外，它使溫度保持在恒定水平，因此非常適合加工溫度敏感的熱熔膠。 LCD 顯示屏和按鈕可實現精確的溫度調節。 這樣，用戶始終知道涂膠器的當前溫度，并能夠在預期溫度下涂膠。 噴涂器使用 310 毫升鋁制熱熔膠筒，例如可以包含 PUR 熱熔膠或 POR 熱熔膠。 膠筒可以輕松無憂地更換。 可選的筒式預熱器 KVG 在使用前加熱膠水并增加每小時可能的膠水輸出量。 膠筒膠槍與空膠筒相結合，可讓您在短時間內測試和處理不同的熱熔膠。 這對于在實驗室工作或為大型生產線鑒定新型熱熔膠特別有用。

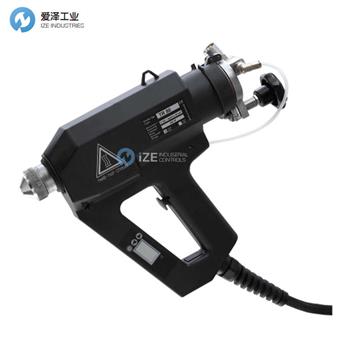

The TR 80 LCD is a hot-melt adhesive spray system. Spray application is a non-contact glue application, which means it goes easy on the materials that are about to be glued. Also, spray application allows covering great areas and using very little glue. A stand for storing with built in pressure regulator and manometer is part of the system and permanently attached to the glue gun TR 80 LCD, so setting the right glue output and spray pattern becomes very easy. The hot-melt adhesive is extruded through air pressure. Pneumatic glue guns increase work speed and simplify exact dosing of the glue. Thanks to the built in electronic temperature regulation, the glue gun is ready to work within 3 – 10 minutes. Furthermore, it keeps the temperature on a constant level thus is a perfect suit for processing temperature-sensitive hot-melt glue. The LCD-display and push-buttons allow a precise temperature adjustment. This way, the user always knows the current temperature of the glue applicator and is able to apply the glue at the intended temperature. The spray applicator uses 310 ml aluminium hotmelt glue cartridges, which for instance can contain PUR-hot-melt adhesive or POR-hot-melt glue. The cartridges can be swapped easy and hassle-free. The optional cartridge pre-heater KVG heats up the glue before use and increases the possible glue output per hour. A cartridge glue gun in combination with empty cartridges lets you test and process different hotmelts within a short period of time. This is especially useful forworking in laboratories or when qualifying a new hot-melt adhesive for a big production line.
REKA噴涂系統其他常用型號：
REKA TR80 LCD/230V
REKA TR80 LCD/120V
REKA TR80 LCD HT/230V
REKA TR80 LCD HT/120V
REKA TR70 LCD
REKA TR700
