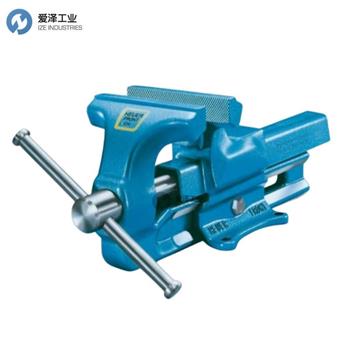

BROCKHAUS HEUER臺虎鉗100120技術參數
Item name | Vice |
Jaw width | 120 mm |
Weight | ~ 9 kg |
Span width | 150 mm |
Span depth | 65 mm |
Min+max. pipe-gripping jaw span-? | 16 - 55 mm |
Itemnumber | 100120 |
BROCKHAUS HEUER臺虎鉗HEUER Vice系列介紹
由于其窄的落錘鍛造導軌，它提供了增強的夾緊深度。內部雙棱鏡導軌設計提供最佳保護，防止損壞和結垢。大軌道導軌表面確保導軌持續、平穩地運行，完全加工以保證在敏感工件上工作時的精度。
另一個優勢是受保護的精密主軸軸承、帶雙作用的鍍鋅主軸、軋制梯形螺紋，以及易于調節的居中導軌。這種結構創造了高精度。
由于冷成型，主軸設計還確保了更高的強度、螺紋側面和底部圓角的低表面粗糙度以及較低的缺口敏感性。電鍍鋅保護主軸免受腐蝕。
帶有鋼制鉚接安全環的軸鍵可提供所需的安全性。砧座集成在后顎中。
HEUER 虎鉗以其高品質和深思熟慮的工藝成為可靠性和耐用性的典范。車間惡劣條件下的理想選擇。
Because of its narrow drop-forged guides, it offers an enhanced clamping depth. Internal dual-prism guide track design offers optimal protection against damage and fouling. Large track guide surfaces assure constant, smooth functioning of the guide rails, fully machined to guarantee precision when working on sensitive workpieces.
A further advantage is the protected precision spindle bearing, the covered galvanised spindle with double-action, rolled trapezoid thread, as well as the easily adjustable, centrally located guide. This construction creates the high level of precision.
The spindle design also ensures higher strength due to cold forming, low surface roughness on the thread flanks and in the base radius as well as reduced notch sensitivity. Electro-galvanising protects the spindle against corrosion.
The spindle keys with riveted safety rings made of steel afford the required safety. An anvil is integrated in the rear jaw.
The HEUER vice is a prime example of reliability and durability on account of its high quality and well-thought-out workmanship. Ideal for rough conditions in the workshop.
BROCKHAUS HEUER臺虎鉗HEUER Vice系列其他常用型號：
BROCKHAUS HEUER 100100
BROCKHAUS HEUER 100120
BROCKHAUS HEUER 100140
BROCKHAUS HEUER 100160
BROCKHAUS HEUER 100180
BROCKHAUS HEUER Bench Vice NEW + ORIGINAL+ ONE YEAR WARRANTY
