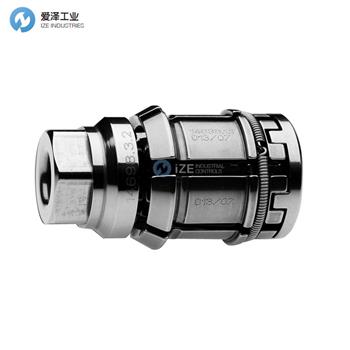

BERG夾爪HSH系列介紹
應用
在HSC工件加工中，根據DIN 69893標準，夾緊力通常已不再足夠。為了實現工具與主軸之間的極其剛性連接，采用直接將夾緊元件置于內部主軸輪廓上的想法，但由于用于傳遞力的截面和表面有限，已達到其設計極限。BERG-Spann technik公司開發的新型HSH夾持器滿足了顯著高于DIN 69893標準規定的夾緊力的要求。
HSH夾持器旨在用于夾緊帶有中央冷卻潤滑供給的空心柄工具。
設計特點
HSH(L)夾持器由四個堅固的夾緊爪組成，通過環形彈簧固定，當換取和拆卸空心柄工具時，夾爪會發生傾斜運動。在夾緊過程中，中心布置的拉桿將動作力量傳遞到夾緊段，作為直接夾緊力作用，無需其他力的偏轉。拉桿的寬大面被設計用于工具彈出。
夾緊元件的結構設計提供了較大的夾緊余量。
Application
For HSC workpiece machining the clamping forces accord ing to DIN 69893 are frequently no longer sufficient. The idea to create an extremely rigid connection between the tool and spindle by placing the clamping element directly against the internal spindle contour, reached its design limits, due to the cross sections and surfaces available for the force transmission. With their newly developed HSH gripper, BERG-Spann technik have met the requirements for clamping forces notably exceeding the values specified in DIN 69893.
HSH gripper are intended for the clamping of hollow shank tooling with central cooling lubricant supply.
Design features
HSH(L) gripper consist of four sturdy clamping claws, which, held by means of an annular spring, execute a tilting movement when the hollow shank tooling is changed and removed. During clamping, the centrally arranged draw-bolt transfers the actuation force onto the clamping segments, where it acts as a direct clamping force without further force deviation. The generously dimensioned face of the draw-bolt has been provided for tool ejection.
The constructive design of the clamping element offers a large clamping reserve.
BERG夾具其他常用型號：
BERG HSH 75/963.14776.000.0
BERG HSH19
BERG HSH24
BERG HSH30
BERG HSH38
BERG HSH48
BERG HSH60
BERG HSH75
BERG HSH95
BERG HSH120
BERG CLAMP NEW + ORIGINAL+ ONE YEAR WARRANTY
