NEXON溫度傳感器TNS3000系列技術參數
Specification | |
Measuring range | |
TNS3000 | -50…125℃ |
Supply voltage | 12…30Vdc |
No-load current consumption | ≤30mA, 24Vdc powered by |
Switch output | |
Output type | Push-pull (compatible withPNPandNPN), normally open and normally closed can be set |
S1,S2Output current | <500mA |
Response time | <10ms |
Voltage drop | <1V |
Switching Accuracy | ≤±0.5%Range |
Current mode analog output | |
Output type | Third line 4…20mA |
LoadRA | RA≤0.5KΩ |
Linearity | ≤±0.5%Range |
Voltage analog output | |
Output type | Third line 0…5V |
LoadRA | RA>10KΩ |
Linearity | ≤±0.5%Range |
Wiring protection | Reverse phase, overload, short circuit protection |
Show | |
Design | Red 4 bit 8mm high brightnessled |
Display range | -1999…9999 |
Accuracy | ≤±0.5%Range |
Stability (annual drift) | ≤±0.3%Range |
Temperature | |
Medium temperature | -50…125℃ |
Ambient temperature | -40…85℃ |
Probe withstand voltage | 200bar |
Material | |
Head case | Zinc alloy |
Case | Stainless steel304 |
Media contact part | Stainless steel316 |
Degree of protection | IP67 |
Outgoing way | M12×1Connector |
Process connection | G1/4 external thread ED seal |
NEXON溫度傳感器TNS3000系列介紹

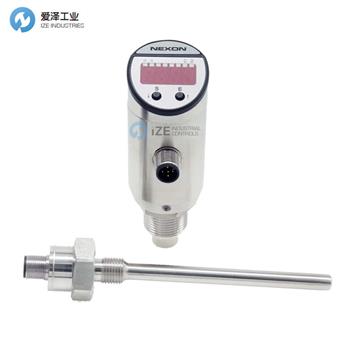

TNS3000 采用獨立探頭和顯示單元設計，使用高精度傳感器測量溫度，并將輸出信號處理為標準電信號進行輸出和顯示。
全金屬外殼；可旋轉高亮 LED 顯示屏；雙鍵設計和友好菜單；多種工藝連接；330° 可旋轉指示器。
? 探頭和顯示單元獨立設計
? 智能產品
? 4 位 LED 顯示屏
? 全金屬外殼
? PNP/NPN 可編程
? 4..20mA 可編程
? 可旋轉指示器
TNS3000, designed with separate probe and display unit, measures the temperature with a high-accuracy sensor and output signal is processed to standard electrical signal for outputing and displaying.
All-metal housing; rotatable highlight LED display; dual keys design and friendly menu; multiple process connections; 330° rotatable indicator.
? Probe and display unit designed separately
? Smart product
? 4-digit LED display
? All-metal housing
? PNP/NPN programmable
? 4..20mA programmable
? Rotatable indicator
NEXON溫度傳感器TNS3000系列其他常用型號：
NEXON TNS3000/DH21S+TNS3000/SNG14M010
NEXON TNS3000/DH21S+TNS3000/SNG14M035
NEXON TNS3000/DH21S+TNS3000/SNG14M085
NEXON TNS3000/DH21S+TNS3000/SNG14M135
NEXON TNS3000/DH21S+TNS3000/SNG14M235
NEXON TNS3000/DH21S+TNS3000/SNG14M335
NEXON TNS3000/DH22S+TNS3000/SNG14M010
NEXON TNS3000/DH22S+TNS3000/SNG14M035
NEXON TNS3000/DH22S+TNS3000/SNG14M085
NEXON TNS3000/DH22S+TNS3000/SNG14M135
NEXON TNS3000/DH22S+TNS3000/SNG14M235
NEXON TNS3000/DH22S+TNS3000/SNG14M335
NEXON TNS3000/DH21S+TNS3000/SNG14M200D8
NEXON TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON溫度傳感器TNS3000/DH21S+TNS3000/SNG14M200D8的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
NEXON溫度傳感器TNS3000系列TNS3000/DH21S+TNS3000/SNG14M200D8技術參數及介紹
