WADECO傳感器MWS-24TX系列介紹
Specifications | Transmitter |
Type | MWS- 24TX |
*Power supply | AC100 ~ 120V or AC200 ~ 240V +10%, 50/60Hz |
**Operating distance | 40m |
Frequency and transmission power | Approx.24GHz, less than 10mW |
Radiation angle | Approx. +12° (angle in half of receiving value) |
Delay time from power on to function | Approx.1sec. |
Power consumption | 2VA |
Noise tolerance | Square wave noise from noise simulator，土+1.5KV, with the frequency of the power supply in the 0° ~ 360° phase. |
Operating ambient temperature | -10°C ~ +55°C |
Non-function ambient temperature | -20°C ~ +70°C |
Vibration resistance | 10 ~ 55Hz, 0.75mm single amplitude in X, Y and Z directions, for 2 hours each. |
Enclosure construction | Splash-proof construction Flange : Diecast zinc Case : Diecast aluminum |
Color | Toupe |
Weight | 2.2kg |
WADECO傳感器MWS-24TX/RX系列介紹

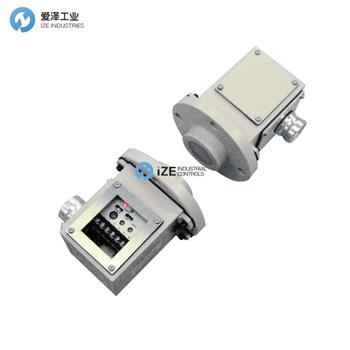

The MWS-24TX/RX type microwave sensor is a Level Switch which consists of a transmitter (MWS-24TX) and a receiver (MWS-24RX), installed face to face. The transmitter unit transmits a microwave beam which is received at the receiver unit. An output relay is released when the beam is obstructed.
The sensor has wide application across all areas of industry where highly reliable, non-contact level detection is required. The sensor is generally used for process control by monitoring presence/absence of product, flow/no flow conditions and point level detection in bins and silos. The sensor may also be used as a proximity switch for detection of vehicles such as dump trucks and rail cars.
MWS-24TX/RX 型微波傳感器是由發射器（MWS-24TX）和接收器（MWS-24RX）面對面安裝的液位開關。 發射器單元發射在接收器單元處接收的微波束。 當光束被阻擋時，輸出繼電器被釋放。
該傳感器廣泛應用于需要高度可靠、非接觸式液位檢測的所有工業領域。 該傳感器通常用于過程控制，通過監控產品的存在/不存在、流量/無流量條件以及料倉和筒倉中的點液位檢測。 該傳感器也可用作檢測自卸卡車和軌道車等車輛的接近開關。
WADECO傳感器常用備件型號：
WADECO MWS-ST-11
WADECO MWS-SR-11
WADECO MWS-ST-2
WADECO MWS-SR-2
WADECO MWS-ST-3-24V
WADECO MWS-SR-3-24V
WADECO MWS-CTX-1
WADECO MWS-CRX-1
WADECO MWS-24TX
WADECO MWS-24RX
WADECO Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
