DEEPACE網絡分析儀KC901Q 20GHZ產品介紹
Description

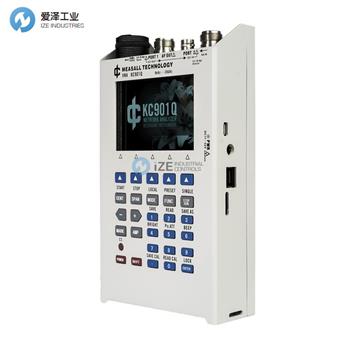

KC901Q is a multipurpose RF instrument integrating a Network Analyzer, spectrum analyzer, field strength meter, and a signal generator. It can measure the level and phase change of signals through the device under test.
Main Features
Up to 20GHz frequency range
1Hz frequency stepping
Ideal accuracy and stability
Dual conversion, good anti-interference ability
Abundant functions and easy to carry
Main Functions
Transmission measurement (Measure phase and level difference)
Reflection measurement (External coupler required)
RF source and extra audio signal source
Spectrum display and field strength observation (potentially used for inspecting
a radio station’s emission performance, or for searching for the interference
sources)
Recommended Applications
The KC901Q is mainly used for adjusting various RF circuits, such as filters, amplifiers, splitters, combiners; With suitable external coupler, it can test input/output impedance, evaluate antenna feeding system and detecte equipment’s signal amplitudes. It can also execute field strength measurement, which is useful for checking the correct operation of low powered devices with integrated antennas and when searching for interference sources etc.
What in Package
KC901Q 1
Charger 1
Shoulder Strap 1
User manual 1
Desktop stand1
描述
KC901Q 是一款多功能射頻儀器，集成了網絡分析儀、頻譜分析儀、場強計和信號發生器。它可以通過被測設備測量信號的電平和相位變化。
主要特點
高達 20GHz 的頻率范圍
1Hz頻率步進
理想的精度和穩定性
雙轉換，抗干擾能力強
功能豐富，攜帶方便
主要功能
傳輸測量（測量相位和電平差）
反射測量（需要外部耦合器）
射頻源和額外的音頻信號源
頻譜顯示和場強觀察（可能用于檢查
無線電臺的發射性能，或?qū)ふ腋蓴_
來源）
推薦應用
KC901Q主要用于調節各種射頻電路，如濾波器、放大器、分路器、合路器；配合合適的外接耦合器，可以測試輸入/輸出阻抗，評估天饋系統，檢測設備信號幅度。它還可以執行場強測量，這對于檢查具有集成天線的低功率設備的正確操作以及搜索干擾源等時很有用。
包裝內有什么
KC901Q 1
充電器1
肩帶 1
用戶手冊 1
桌面支架1
