GEMS SENSORS傳感器156268產品參數
Specifications | |
Sku | 156268 |
Product Group | Flow |
Sensor Type | RotorFlow |
Model | RFS |
Primary Material Of Construction | Alloy |
Body Material | Brass |
Wetted Materials | Brass, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter - Polypropylene) |
Maximum Pressure | 200 psi |
Minimum Temperature | -20°F |
Maximum Temperature | 212°F |
Input Power | 24 VDC |
Output | SPDT (1 amp) |
FlowRange | 4.0 - 20.0 GPM |
Standard Flow Range | 4.0 - 20.0 GPM |
Standard Flow Accuracy | ±5% (factory set) |
Low Flow Range | 1.5 - 12.0 GPM |
Low Flow Accuracy | ±5% (factory set) |
Port Size | 1/2" NPT Female |
Electrical Termination | 24" Long, 22 AWG, PVC Leads |
Recommended Filtration | 150 micron |
Approvals | UL Recognized, CE |
Weight | 0.5 |
GEMS SENSORS傳感器156268產品介紹
PRODUCT DESCRIPTION:

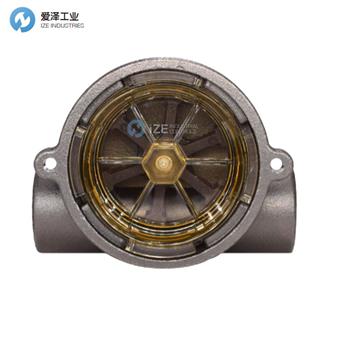

RFS Type Electronic Flow Sensors combine visual confirmation of flow with dynamic, electronic switch operation. RFS are ideal in a range of applications including semiconductor processing equipment, lasers, medical equipment, X-Ray and other high-power tubes and robotic welding equipment.
Combines Visual Confirmation of Flow with Dynamic; Electronic Switch Operation
Easy; Adjustable Switch Point Calibration: a Local LED Signals When Setpoint is Reached
產品描述：
RFS 型電子流量傳感器將流量的視覺確認與動態的電子開關操作相結合。 RFS 是一系列應用的理想選擇，包括半導體加工設備、激光器、醫療設備、X 射線和其他高功率管以及機器人焊接設備。
將流動的視覺確認與動態相結合； 電子開關操作
簡單的; 可調開關點校準：當達到設定點時，本地 LED 會發出信號
