CTC傳感器LP202系列技術參數
Specifications | Standard | Metric |
Part Number | LP202 | M/LP202 |
Tolerance: 4 Ma | (± 10%) | |
Tolerance: 20 mA | (± 10%) | |
Electrical | ||
Settling Time | <30 Seconds | |
Voltage Source (IEPE) | 15-30 VDC | |
Case Isolation | >108 ohm | |
Environmental | ||
Temperature Range | -40 to 212°F | -40 to 100°C |
Electromagnetic Sensitivity | CE | |
Sealing | Welded, Hermetic | |
Submersible Depth | 200 ft. | 60 m |
Physical | ||
Sensing Element | PZT Ceramic | |
Sensing Structure | Shear Mode | |
Weight | 2.9 oz | 82 grams |
Case Material | 316L Stainless Steel | |
Mounting | 1/4-28 | |
Connector (Non-Integral) | 2 Pin MIL-C-5015 | |
Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm |
Mounting Hardware | 1/4-28 Stud | M6x1 Adapter Stud |
Calibration Certificate | Current Output @ 100 Hz | |
CTC傳感器LP202系列介紹

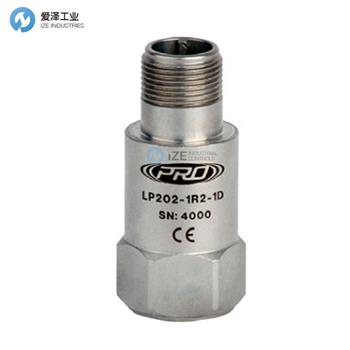

LOOP POWER SENSOR, 4-20 MA OUTPUT PROPORTIONAL TO VIBRATION IN VELOCITY, TOP EXIT 2 PIN CONNECTOR
-40 to 212°F (-40 to 100°C) Temperature Range
Welded, Hermetic Sealing
Continuously Monitor & Protect Important Machinery
Product Features
Continuously Monitor & Protect Important Machinery
4-20 mA current proportional to Vibration
Transmit Signals Over Long Distances with No Signal Loss
Customize Your Settings to Focus on the Most Important Frequencies
回路功率傳感器，4-20 mA 輸出與速度振動成比例，頂部出口 2 針連接器
-40 至 212°F（-40 至 100°C）溫度范圍
焊接，密封
持續監控和保護重要機械
產品特點
持續監控和保護重要機械
4-20 mA 電流與振動成正比
長距離傳輸信號，無信號丟失
自定義設置以專注于最重要的頻率
CTC傳感器LP202系列其他常用型號：
CTC LP202-1R1-1E
CTC LP202-1R2-1E
CTC M/LP202-4R1-1D
CTC LP202-4R1-1E
CTC LP202-0R1-1E
CTC LP202-1R1-1E/020
CTC LP202-2R1-1E
CTC sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CTC傳感器LP202-1R1-1E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CTC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
