TUNKERS傳感器NI2-Q9.5-AP6-0.1-FS4.4X3/S304技術參數
Type | NI2-Q9.5-AP6-0.1-FS4.4X3/S304 |
ID no. | 1650060 |
Special version | S304 corresponds to: |
Rated switching distance | 2 mm |
Mounting conditions | Non-flush |
Secured operating distance | ≤ (0.81 × Sn) mm |
Correction factors | St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4 |
Repeat accuracy | ≤ 2 % of full scale |
Temperature drift | ≤ ± 10 % |
Hysteresis | 3…15 % |
Ambient temperature | -25…+70 °C |
Operating voltage | 10…30 VDC |
Residual ripple | ≤ 10 % U ss |
DC rated operational current | ≤ 150 mA |
No-load current | 20 mA |
Residual current | ≤ 0.1 mA |
Isolation test voltage | ≤ 0.5 kV |
Short-circuit protection | yes / Cyclic |
Voltage drop at I e | ≤ 1.8 V |
Wire breakage/Reverse polarity protection | Complete |
Output function | 4-wire, NO contact, PNP |
Smallest operating current | ≥ 1 mA |
Switching frequency | 0.03 kHz |
Design | Monitoring Kit for Spanners, Q9,5 |
Dimensions | 47 x 18 x 18 mm |
Housing material | Metal, PBT-GF20-V0 |
Active area material | Plastic, PP GR-20 |
Electrical connection | Connector, M12 × 1 |
Cable quality | ? 2 mm, Gray, Lif9Y-11Y, PUR, 0.1 m |
Core cross-section | 3 x 0.08 mm2 |
Litz wire | 40 x0.05 mm |
Vibration resistance | 55 Hz (1 mm) |
Shock resistance | 30 g (11 ms) |
Protection class | IP67 |
MTTF | 2283 years acc. to SN 29500 (Ed. 99) 40 °C |
Power-on indication | LED, Green |
Switching state | 2 × LEDs, Yellow/Red |
TUNKERS傳感器NI2-Q9.5-AP6-0.1-FS4.4X3/S304介紹及尺寸
Q9,5 電源模塊，帶有兩個連接的傳感器和 LED
可重定位塊 0°…90°，帶有用于靈活電纜布線的交叉鉆孔
塑料，PP GR-20
耐磁場（耐焊接），適用于高達 100 mT 的直流和交流場
2 個常開觸點，PNP 輸出
直流 4 線，10…30 VDC

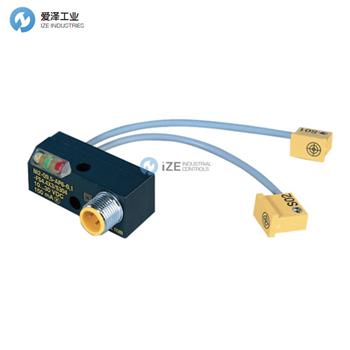

Q9,5 power block with two connected sensors and LEDs
Relocatable block 0°…90°, with cross drilling for flexible cable routing
Plastic, PP GR-20
Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
2 x NO contact, PNP output
DC 4-wire, 10…30 VDC
TUNKERS傳感器其他常用型號：
TUNKERS NI2-Q9.5-AP6/S34
TUNKERS NI2-Q9.5-AP6-0.15-FS4.4X3/S304
TUNKERS NI2-Q9.5-AP6-0.1-FS4.4X3/S304
TUNKERS NI2-Q9.5-AP6-0.2-FS4.4X3/S304
