LORENZ放大器GM80 106781技術參數
Type | GM80 |
Article-No. | 106781 |
Measurement accuracy | 0.1 % full scale ±1 digit |
Measuring rate adjustable | 1; 10; 100; 1000/s |
Display rate | 5/s |
Display range | ±9999 +3 digits for unit |
Zero point adjustment | automatically / manually |
Sensor parameter sets | 10 |
Logger mode | window, diagram, hand, auto |
Memory values | max. 15288 |
Transfer RS232 | 2400, 4800, 9600, 19200, 38400, 115200 Baud |
USB | USB 2 |
Bridge resistance of strain gauge | 350 ... 2000 Ω |
Input sensitivity passive | ±3.3 mV/V |
Input sensitivity active | ±10V |
Input sensitivity current | 0/4 ... 20 mA on 75 Ω burden |
Current connection | 2 or 3 wire technique |
Excitation voltage passive | 5V, 20 mA |
Supply voltage active | ±12V, each 100 mA (±12V combined max. 120 mA) |
Operating time at 50 % duty ratio with accumulator for passive sensors | >20 h |
Operating time at 50 % duty ratio with accumulator for active sensors | >8 h |
Electrical connection | D-SUB socket, high density, 15-pin |
Rated temperature range | 15 ... 35 °C |
Service temperature range | 5 ... 45 °C |
Storage temperature range | -10 ... 70 °C |
Dimensions (L x W x H) | 200 x 100 x 40 mm |
Weight | 500 g |
Level of protection | IP40 |

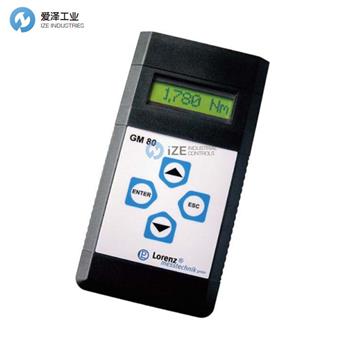

LORENZ放大器GM80 106781產品介紹
測量放大器可以處理 ±3.3 mV/V 的傳感器應變儀 (SG) 信號和 ±10V 和 0/4 ... 20 mA 的有源信號。
測量放大器可以通過電池或蓄電池操作移動使用，但也可以配備外部主適配器。
通過使用高精度放大器和組件、16 位 A/D 轉換器和快速微控制器，確保了高測量精度和快速測量速率。
一個多功能的可配置數據記錄器存儲一系列帶有日期的測量值和多達 15288 個測量值。
測量值或記錄值可以通過 USB 或 RS232 接口輸出到計算機或打印機。
十個參數集可用于傳感器。其中，在每種情況下，校準數據、傳感器名稱和物理單位都被存放。
皮重、取最小值/最大值等功能。并刪除最小/最大。測量期間可用。
數據記錄器或接口可以通過額外的觸發輸入進行外部控制。
在低測量速率下，應變計電源時鐘節電。如果 GM80 未處于測量模式，則設備會在三分鐘后關閉。
The measuring amplifier can process sensor strain gauge (SG) signals of ±3.3 mV/V and active signals of ±10V and 0/4 ... 20 mA.
The measuring amplifier can be used mobile by battery or accumulator operation, but can also be supplied with an external main adapter.
A high measuring accuracy combined with fast measuring rates is ensured by the employment of highly precise amplifiers and components, 16 bit A/D converters and a fast microcontroller.
A versatile configurable data logger stores a series of measurements with date and up to 15288 measured values.
Measured values or logging values can be expelled to a computer or printer via the USB or RS232 interface.
Ten parameter sets are available for sensors. Therein, in each case,the calibration data, the sensor designation and physical unit are deposited.
Functions such as tare, fetch min./max. and delete min./max. are available during the measurement.
The data logger or the interface can be controlled externally via an additional trigger input.
At low measuring rates, the strain gauge supply is clocked power-saving. If the GM80 is not in measuring mode, the device shuts off after three minutes.
