Meter | Rotor Blade Angle | Maximum Capacity ACFH at 0.25 psig |
T-18 | 45° | 18,000 |
T-27 | 30° | 35,000 |
T-35 | 45° | 60,000 |
T-57 | 30° | 14,000 |
T-60 | 45° | 27,000 |
T-90 | 30° | 57,000 |
T-140 | 45° | 90,000 |
T-230 | 30° | 230,000 |

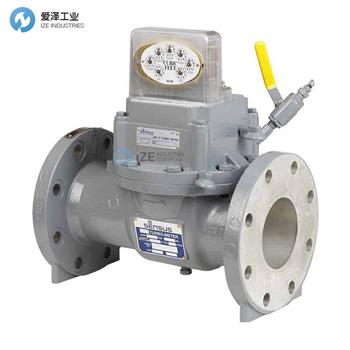

The Mark II Turbo Meters provide greater range, compact size, and simplified maintenance when compared to alternative methods of large volume measurement. They are industry leaders when it comes to providing more sophisticated measurement systems and direct data communications. Mark II meters readily accept a multitude of meter-mounted readout devices and provide calibrated pulse outputs for electronic measurement.
Features
? Top entry design allows moving parts that are contained in an interchangeable module to be lifted out of the meter body while the body remains in-line
? Thrust load balancing for increased bearing life at all operating conditions
? Gears and other moving parts housed in a sealed chamber protected from line contaminants
? Modules with 45° or 30° rotor blades to accommodate station upgrades without body or piping changes
? Unique internal flow conditioning and rotor designs extract the maximum amount of kinetic energy from flowing gas
與大體積測量的替代方法相比，Mark II渦輪流量計提供更大的范圍、更緊湊的尺寸和更簡單的維護。 在提供更復雜的測量系統和直接數據通信方面，他們是行業領導者。 Mark II 儀表可輕松接受多種安裝在儀表上的讀數設備，并為電子測量提供校準脈沖輸出。
特征
? 頂部入口設計允許將包含在可互換模塊中的移動部件從儀表主體中取出，同時主體保持成一直線
? 推力負載平衡可在所有操作條件下延長軸承壽命
? 齒輪和其他移動部件安裝在密封腔內，免受管路污染物的影響
? 帶有 45° 或 30° 轉子葉片的模塊，無需更換機身或管道即可適應站升級
? 獨特的內部流動調節和轉子設計從流動的氣體中提取最大量的動能
SENSUS流量計Mark II系列其他常用型號：
SENSUS T-18
SENSUS T-27
SENSUS T-35
SENSUS T-57
SENSUS T-60
SENSUS T-90
SENSUS T-140
SENSUS T-230
SENSUS Turbo Meters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENSUS流量計T-27的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENSUS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
SENSUS流量計T-27介紹
