HYDAC溫度傳感器ETS386-3-150-000規格描述
ETS 3 |
8 = electrical connection for separate temperature probe |
6 = male M12x1, 4 pole only possible on output models “2” and “3” |
3 = 1 switching output and 1 analogue output only in conjunction with electrical connection type “6” |
150=-30 .. +150 °C (-22 .. +302 °F) |
000 = display in °C |
HYDAC溫度傳感器ETS380系列描述及選型

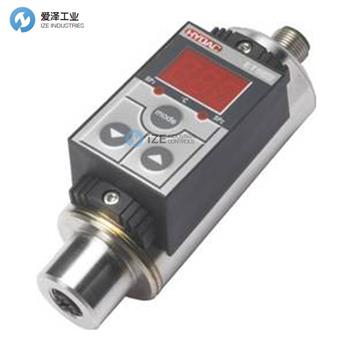

The ETS 380 is a compact, electronic temperature switch with 3-character digital display. In the version for external temperature sensors, the device offers a measurement range of -30 ... +150°C and is used primarily with the TFP 100 temperature sensor which was specially developed for tank installation. It is however also possible to evaluate commercially available PT 100 temperature sensors. Various output variants with one or two switching outputs, optionally with additional analogue output signal of 4 ... 20 mA open up a multitude of application opportunities. The switching points and the associated hystereses can be set up per keyboard very quickly and with great user-friendliness. For adjustment to the respective application, the device offers many additional setting parameters (e.g. switching delay times, opener/closer functions, etc.)
2 transistor switching outputs, capable of bearing loads of up to 1.2 A per output
Optionally with analogue output 4 ... 20 mA
3-character digital display
Switching point or window function
Switching / reset points and many helpful additional functions can be set using the foil keyboard
ETS 380是一款緊湊型電子溫度開關，帶有3位數字顯示。在用于外部溫度傳感器的版本中，該設備提供 -30 ... +150°C的測量范圍，主要與專為儲罐安裝開發的 TFP 100 溫度傳感器一起使用。然而，也可以評估市售的 PT 100 溫度傳感器。帶有一個或兩個開關輸出的各種輸出變體，可選擇附加的4 ... 20 mA 模擬輸出信號，開辟了大量應用機會?？梢苑浅？焖俚卦O置每個鍵盤的切換點和相關的滯后，并具有極大的用戶友好性。為了適應各自的應用，設備提供了許多額外的設置參數（例如開關延遲時間、開門/關門功能等）
2個晶體管開關輸出，每個輸出能夠承受高達 1.2 A 的負載
可選模擬輸出 4 ... 20 mA
3位數字顯示
切換點或窗口功能
可以使用鋁箔鍵盤設置切換/重置點和許多有用的附加功能
HYDAC溫度傳感器ETS380系列其他常用型號：
HYDAC ETS 386-2-150-000
HYDAC ETS 386-3-150-000
HYDAC ETS 388-5-150-000
