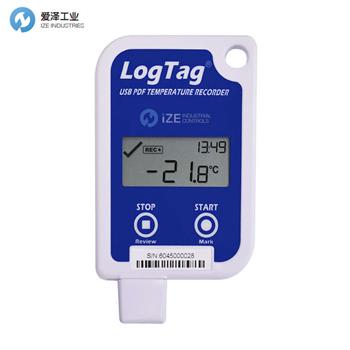

LOGTAG溫度記錄儀UTRID-16F技術參數
Technical Specifications | |
Model | UTRID-16F (Fixed Battery) WHO PQS E006/076 qualified |
Measurement Range | -30 °C to +60 °C |
Capacity | 16,129 temperature readings. |
Sampling Interval | Configurable from 30 seconds to 18 hours. |
Start Options | Push button start or specific date/time. |
Start Up Delay | Optional start delay of up to 72 hours. |
Environmental | IEC 60529: IP64 with USB cap fitted. |
Power Source | UTRID-16F - CR2450 3V LiMnO2 UN38.3 approved coin cell battery (Fixed) |
Battery Life | UTRID-16F: Typically 2 years of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly) provided recorder is kept within the storage temperature range when not in use. |
Size | 93 mm (H) x 54.5 mm (W) x 8.6 mm (T) including protective USB cap. |
Weight | 39 g |
Case Material | Polycarbonate |
Alarm Functions | Three configurable upper and three configurable lower alarms. |
Connection Interface | USB 2.0, A-type plug. |
Software | PDF Reader, LogTag? Analyzer 2.8 or higher. |
LOGTAG溫度記錄儀UTRID-16系列介紹
LogTag UTRID-16 提供了創建詳細 PDF 報告的便利，無需額外的附件和專有軟件，并具有顯示屏，可以立即查看當前和過去的溫度以及警報統計數據。
顯示屏顯示記錄狀態、最后記錄的溫度和多達六個用戶可配置警報的警報狀態以及任何溫度偏移的持續時間。當 UTRID-16 使用其集成插頭插入計算機的 USB 端口時，會自動生成記錄的溫度數據和警報的詳細 PDF 報告。
為了進行更詳細的數據分析，UTRID-16 還創建了一個與 LogTag Analyzer ?軟件和數據管理選項兼容的加密數據文件。
? 顯示最多六個警報的溫度和警報狀態。
? 可以連接到任何帶有 USB 端口的計算機。
? 自動生成 PDF 報告作為數據的永久記錄。
? 創建與 LogTag Analyzer 兼容的加密數據文件。
? UTRID-16 提供用戶可更換電池和固定電池類型。
The LogTag UTRID-16 provides the facility to create a detailed PDF report without need for extra accessories and proprietary software and features a display, allowing immediate viewing of current and past temperatures as well as alarm statistics.
The display shows recording status, last recorded temperature and alarm status of up to six user-configurable alarms and duration of any temperature excursions. When the UTRID-16 is plugged into a computer's USB port using its integrated plug, a detailed PDF report of the recorded temperature data and alarms is be automatically generated.
For a more detailed data analysis, the UTRID-16 also creates an encrypted data file compatible with LogTag Analyzer? software and data management options.
? Display showing temperature & alarm status of up to six alarms.
? Can be connected to any computer with a USB port.
? Automatic generation of a PDF report as a permanent record of the data.
? Creates an encrypted data file compatible with LogTag Analyzer.
? UTRID-16 offers both a user Replaceable battery and a Fixed Battery type.
LOGTAG溫度記錄儀其他常用型號：
LOGTAG UTRID-16
LOGTAG UTRID-16R
LOGTAG UTRID-16F
LOGTAG USRID-16W
LOGTAG USRID-16
LOGTAG USRIC-16
LOGTAG USRIC-8
LOGTAG USRIC-4
LOGTAG UTRED-16F
LOGTAG UTREL-16F
