TRANS-TEK傳感器0243-0000技術參數
SPECIFICATIONS - ELECTRICAL | |
MODEL | 0243-00000 |
WORKING RANGE, ± Inches (mm) | 0.500 (12.7) |
MAX. USABLE RANGE, ± Inches (mm) | 0.750 (19.1) |
INPUT, VDC | 6.0 Min. to 30 Max |
NOMINAL F.S. OUTPUT, ±VDC with unloaded output | |
@ 6 VOLT INPUT | 3.1 |
@ 15 VOLT INPUT | 8.3 |
@ 24 VOLT INPUT | 13.5 |
@ 30 VOLT INPUT | 17.0 |
INPUT CURRENT | 8.3 mA @ 6 Volt input to 52 mA @ 30 Volt input |
NON-LINEARITY | ±0.5% Full Scale Over Total Working Range |
INTERNAL CARRIER FREQUENCY, Hz | 3400 |
% RIPPLE, RMS (nominal) | 0.8 |
OUTPUT IMPEDANCE, Ohms | 5500 |
FREQ. RESPONSE (3 dB down), Hz | 110 |
TEMPERATURE RANGE | -65°F to +250°F (-54°C to +121°C) |
RESOLUTION | Infinite |

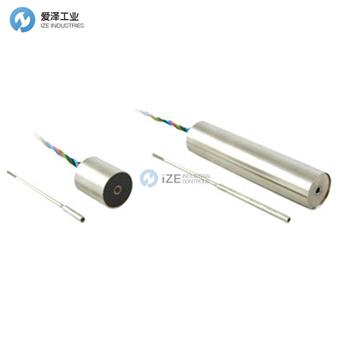

TRANS-TEK傳感器240系列介紹
240 系列DC-DC LVDT 是一個集成封裝，由精密線性可變差分變壓器、固態振蕩器和相敏解調器組成。該傳感器的設計具有出色的線性度、無限分辨率和高靈敏度。輸入和輸出電路彼此電氣隔離，并與線圈組件外殼電氣隔離，使其可直接用于浮動或接地回路系統。直流指示器、記錄器和控制系統通?？梢杂纱笾绷鬏敵鲋苯域?qū)動。磁芯在線圈組件內軸向位移時，會在輸出中產生與位移成正比的電壓變化。
The Series 240 DC-DC LVDTs are an integrated package consisting of a precision linear variable differential transformer, a solid state oscillator, and a phase-sensitive demodulator. The transducer is designed for excellent linearity, infinite resolution, and high sensitivity. Input and output circuits are electrically isolated from each other and from the coil assembly housing, making them usable directly in floating or ground return systems. DC indicators,recorders, and control systems can usually be driven directly by the large DC output. The core, when displaced axially within the coil assembly, produces a voltage change in the output directly proportional to the displacement.

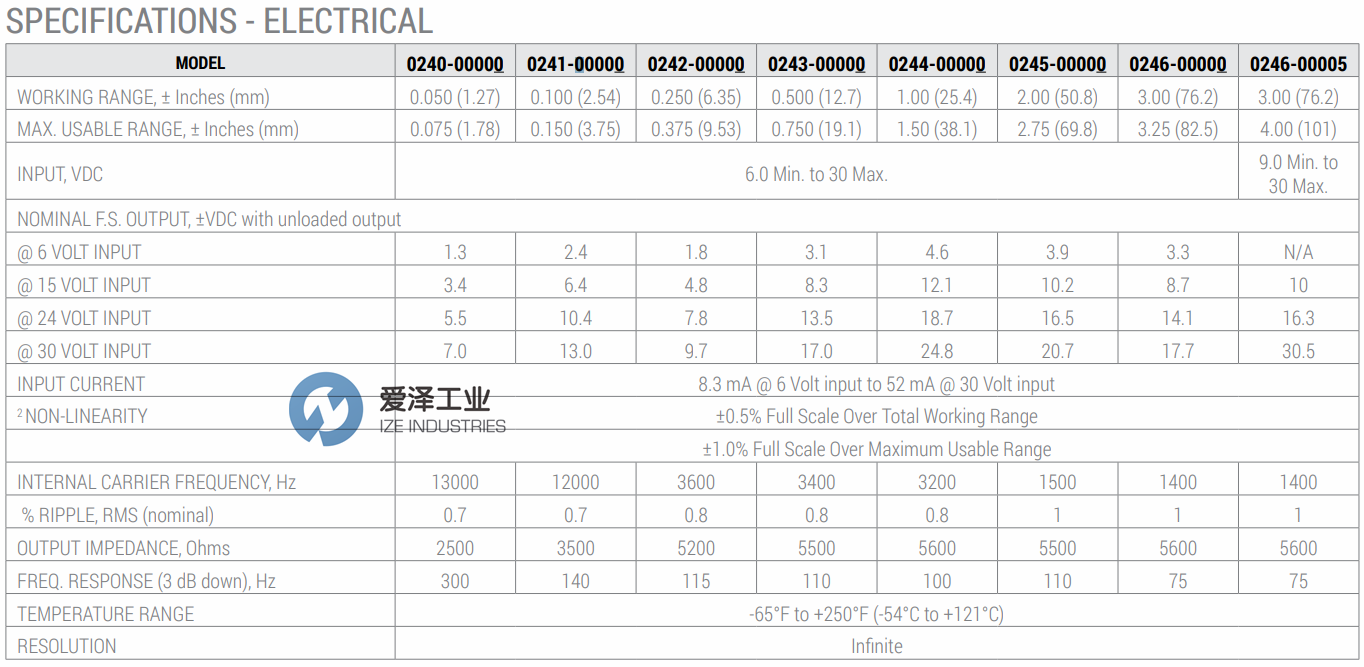

TRANS-TEK傳感器240系列電氣規格
TRANS-TEK傳感器240系列其他常用型號：
TRANS-TEK 0240-00000
TRANS-TEK 0241-00000
TRANS-TEK 0242-00000
TRANS-TEK 0243-00000
TRANS-TEK 0243-00005
TRANS-TEK 0244-00000
TRANS-TEK 0245-00000
TRANS-TEK 0246-00000
TRANS-TEK 0246-00005
TRANS-TEK senser NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRANS-TEK傳感器0243-0005的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRANS-TEK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
TRANS-TEK傳感器240系列0243-0005介紹
