REXROTH浮球開關ABZMS-41系列技術參數
Technical data | |
general | |
Installation position | Vertical ±10 ° |
Medium temperature range °C [F] | –20 to +80 [–4 to +176] |
Ambient temperature range | |
– M… and RTA °C [F] | –20 to +85 [–4 to +185] |
– D1 and D2 °C [F] | –20 to +70 [–4 to +158] |
Material | |
– Sliding tube ? 20 mm [0.79 inch] | CU alloy |
– Float | 1.4571 |
– Flange | PA12 + 25GF (25 % of glass fiber) |
– Protective tube ? 60.3 mm [2.37 inch] | Stainless steel 1.4301 |
Seal material | Klinger C-4400 |
Maximum switching point L1 mm [inch] | 1140 [44.88] |
hydraulic | |
Maximum operating pressure bar [psi] | 1 [14.5] |
electrical | |
Protection class according to DIN EN 60529 | IP 65 |
Plug-in connection | 4-pole M12x1 (material: metal) (K24) |

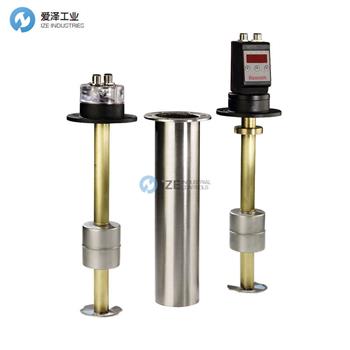

REXROTH浮球開關ABZMS-41系列介紹
浮子開關是由流體移動的浮子操作的開關裝置。這些用于控制動力裝置油箱中的液位。
三個系列可供選擇：
? ABZMS…M型浮動開關，最多有四個可調開關觸點常閉觸點/常開觸點或最多三個開關觸點，可選擇固定設置溫度觸點作為 60 °C、70 °C 或 80 °C 的常閉觸點
? ABZMS…RTA型浮動開關，帶電阻測量鏈（液位）和電阻溫度計（溫度），模擬輸出為 4 至 20 mA。
? ABZMS…D型浮子開關與 ABZMS…RTA 型一樣帶有電阻測量鏈和電阻溫度計，以及用于液位和溫度設置的附加顯示和控制單元。
Float switches are switching devices operated by a float moved by fluid. These are used to control fluid levels in power unit tanks.
Three series are available:
? Float switches typeABZMS…M with a maximum of four adjustable switching contacts normally closed contact/ normally open contact or a maximum of three switching contacts and optionally fixedly set temperature contact as normally closed contact for 60 °C, 70 °C or 80 °C
? Float switches type ABZMS…RTA with resistance measuring chain (level) and resistance thermometer (temperature) with analog output from 4 to 20 mA.
?Float switches type ABZMS…D with resistance measuring chain and resistance thermometer as with type ABZMS...RTA and additional display and control unit for level and temperature setting.
REXROTH浮球開關ABZMS-41系列選型
REXROTH浮球開關ABZMS-41系列其他常用型號：
REXROTH ABZMS-41-1X/0800/M2-T60F/DC-K24 R901363154
REXROTH ABZMS-41-1X/0800/M2-T80F/AC-K6 R901269286
REXROTH ABZMS-41-1X/0800/M2-T80F/DC-K24 R901269293
REXROTH ABZMS-41-1X/0800/M2/1AC-K14 R901269280
REXROTH ABZMS-41-1X/0800/M2/DC-K24 R901269277
REXROTH ABZMS-41-1X/0800/RTA/DC-K24 R901269281
REXROTH ABZMS-41-1X/1000/M1S-K6 R901219588
REXROTH ABZMS-41-1X/1000/M2-T 70F/DC-K24 R901 288951
REXROTH ABZMS-41-1X/1000/M2/AC-K14 R901287518
REXROTH ABZMS-41-1X/1000/M2/DC-K24 R901269287
REXROTH ABZMS-41-1X/1000/RTA/DC-K24 R901282837
REXROTH ABZMS-41-1X/1200/M1S-K6 R901219589
REXROTH ABZMS-41/1X/0500/M2/AC-K14 R901269276
REXROTH Float switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH浮球開關ABZMS-41/1X/0500/M2/AC-K14 R901269276的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
REXROTH浮球開關ABZMS-41系列ABZMS-41/1X/0500/M2/AC-K14 R901269276技術參數及選型
