LOGTAG數據讀取器UTRIX-16技術規格
Product Model | UTRIX-16. |
Sensor Measurement Range | -30°C to +70°C (-22°F to +158°F). |
Operating Temperature Range | -30°C to +70°C (-22°F to +158°F).* |
Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). |
Rated Temperature Reading Resolution | Less than 0.1°C/F. |
Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999. |
Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging. |
Sampling Interval | Configurable from 30 seconds to 18 hours. |
Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
Alarms | 1 configurable upper and 1 configurable lower alarms. |
Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. |
Environmental | IEC 60529: IP64 with USB cap fitted. |
Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
Real Time Clock | Built-in real time clock. |
Connection Interface | USB 2.0, A-type plug |
Software | PDF Reader, LogTag? Analyzer 2.5 or higher. |
Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
Weight | 36g. |
Case Material | Polycarbonate. |
Footnote | *(-30°C to +60 °C applies to Loggers with serial numbers 5x40x44197 or greater. Loggers with serial numbers prior to this have an operating temperature range of -25°C to +60°C). |
LOGTAG數據讀取器UTRIX-16介紹
LogTag UTRIX-16滿足了對經濟高效且可靠的多用途溫度記錄儀的不斷增長的需求。它不需要特殊的硬件或?qū)Ｓ熊浖纯稍L問記錄的數據，并且可以生成完整詳細的PDF報告。
UTRIX-16可存儲-30°C至+ 70°C（-22°F至+ 158°F）測量范圍內的實時溫度讀數，顯示用戶可配置的警報，并帶有集成的，壽命USB連接器。
UTRIX-16直接插入計算機USB，以便用戶輕松配置，以適應各種記錄和警報情況。下載后，它會自動生成一個非常詳細的PDF報告，并可以選擇使用免費提供的LogTag?Analyzer軟件下載數據，以進行更詳細的分析。
如果任何讀數超出了配置設備時指定的限制，則紅色的ALERT指示燈可立即顯示-無需訪問PC。綠色的OK指示燈可立即直觀地確認設備正在運行。

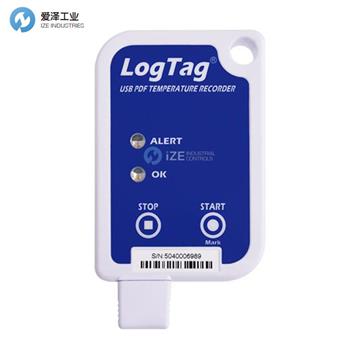

The LogTag UTRIX-16 satisfies the growing need for a cost effective and reliable multi-use temperature logger. It requires no special hardware or proprietary software to access the recorded data and can generate a fully detailed PDF report.
The UTRIX-16 stores real-time temperature readings over a measurement range of -30°C to +70°C (-22°F to +158°F), displays user-configurable alerts, and comes with an integrated, long-life USB connector.
The UTRIX-16 plugs directly into the computer USB for easy configuration by the user for a wide range of recording and alert conditions. Upon download, it automatically generates a fully detailed PDF report with the option to download the data using the freely available LogTag? Analyzer software for a more detailed analysis.
A red ALERT indicator provides an immediate indication – without access to a PC – if any readings are outside the limits specified at the time the unit was configured. A green OK indicator provides immediate visual confirmation that the unit is operating.
LOGTAG數據讀取器其他常用型號：
LOGTAG TRIX-8 / TRIX-16
LOGTAG TREX-8
LOGTAG HAXO-8
LOGTAG HASO-8
LOGTAG SRIC-4
LOGTAG UTRIX-16
LOGTAG USRIC-8
LOGTAG USRIC-4
LOGTAG USRID-16
LOGTAG UTRID-16
LOGTAG UHADO-16
LOGTAG UTRED30-16
LOGTAG UTRED30-WiFi
LOGTAG Data reader NEW + ORIGINAL+ ONE YEAR WARRANTY
