GRACEPORT指示器P-S10S21-M3RX規格描述
Product Specifications | |
Component Details | |
Part Number | P-S10S21-M3RX |
Includes | Voltage Indicator (R-3W) and Safe-Test Point (R-3MT), UL Type 4 Housing, Horizontal Mount |
Electrical Specifications | |
Operational Temperature Range | -20°C to +55°C |
Storage Temperature Range | -45°C to + 85°C |
Operational Range AC Single/3-Phase | 40-600VAC 50/60/400Hz |
Operational Range DC or Stored Energy | 30-600 VDC |
Mechanical Specifications | |
Enclosure Rating | IP65 |
Housing Size | M Size Housing |
UL Type | Type 4 |
Latch | Type 304 Stainless Steel |
Cover | Polycarbonate, UV rated |
MountHorizontal | |
Geometric Data | |
Width | 6.50 in |
Height | 3.78 in |
Depth | 1.60 in |
Commercial Data | |
Country of Origin | US |
Schedule B Code | 8531.20.00400 |
GRACEPORT指示器產品介紹

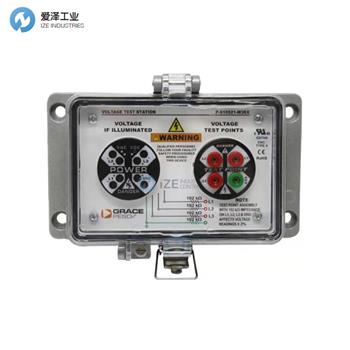

Voltage Test Station with Flashing Voltage Indicator and Safe-Test Point, Horizontal Mount, UL Type 4 Housing
電壓測試站，帶閃爍的電壓指示器和安全測試點，水平安裝，UL Type 4外殼
GRACEPORT指示器P-S10S2系列其他常用型號：
GRACEPORT P-S10S21-M2RX-V
GRACEPORT P-S10S21-M3RX-V
GRACEPORT P-S10S21-M4RX
GRACEPORT P-S10S21-M3RX
GRACEPORT P-S10S21-M4RX-V
GRACEPORT P-S10S21-M2RX
GRACEPORT P-S10S21-M5RX
GRACEPORT Indicator NEW + ORIGINAL+ ONE YEAR WARRANTY
