KUBLER編碼器KIH40系列產品參數
Specification | |
MECHANICAL | |
Dimension | ? 40 mm |
Shaft type | 8 mm hollow shaft, blind hole |
Flange type | ? 40.00 mm |
? 46.00 mm | |
Working temperature | -20 °C ... +70 °C |
Protection level | IP64 |
Connection types | Axial cable |
Radial cable | |
Max. rotational speed | 4,500 min -1 |
Weight | 170 g |
ELECTRICAL | |
Scanning | optical |
Resolution max. | 2.500 ppr incremental |
Supply voltage | 5 V DC |
Interfaces | Push-pull |

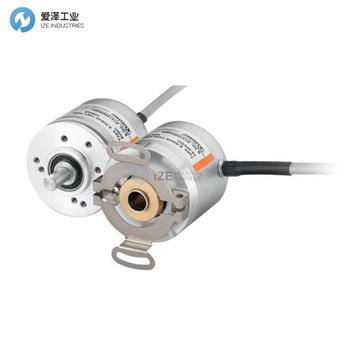

KUBLER編碼器KIH40系列產品介紹
帶有光學傳感器的Sendix KIS40/KIH40增量式緊湊型編碼器是為最大經濟性而設計的，其分辨率高達每轉2500個脈沖。來自先進的Sendix技術的特殊細節可以在這些編碼器中找到。這會產生對振動和安裝誤差的特殊抵抗力。它為成本敏感的應用程序制定了新的標準。廣泛的性能范圍開拓了許多應用領域，因此特別適用于狹窄的安裝空間以及較小的機器和設備。
The Sendix KIS40 / KIH40 incremental compact encoders with optical sensors are designed for maximum economy and are available with a resolution of up to 2500 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a special resistance to vibrations and installation errors. It sets new standards in cost-sensitive applications. The wide performance range opens up many fields of application and is therefore particularly suitable for narrow installation spaces as well as smaller machines and devices.

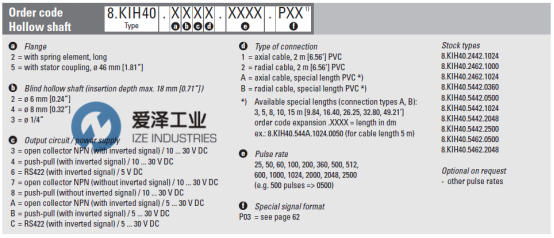

選型參考
KUBLER編碼器8.KIH40系列其他常見型號：
KUBLER 8.KIH40.2442.1024
KUBLER 8.KIH40.2462.1000
KUBLER 8.KIH40.2462.1024
KUBLER 8.KIH40.5442.0360
KUBLER 8.KIH40.5442.0500
KUBLER 8.KIH40.5442.1024
KUBLER 8.KIH40.5442.2048
KUBLER 8.KIH40.5442.2500
KUBLER incremental encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.KIH40 5442.1000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
