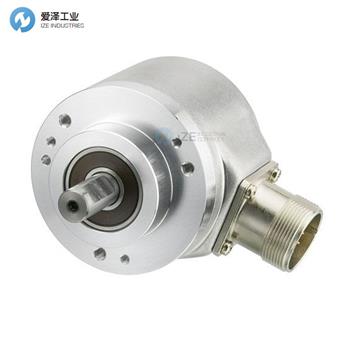

DYNAPAR編碼器HS350240G112H技術參數
Model | HS35：Size 35 heavy-duty, sealed hollowshaft encoder |
PPR | 0240 |
Bore Size | G：1" |
Fixing | 1：Clearance hole for 3/8" bolt on 5.88" dia. bolt circle (to fit 4-1/2" NEMA C-face) |
Format | 1：single ended,bidirectional (AB) |
Output | 2：5-26V in, 5-26V push-pull out |
Termination | H：5 Pin M12 Connector |
DYNAPAR編碼器HS35系列產品介紹
Series HS35
? Sealed Hollow Shaft design eliminates mounting bracket, flexible shaft coupling and installation labor
? Redesigned one-piece hub for less runout and jitter
? Can accomodate up to 1-1/4" diameter shaft
? New more rigid unbreakable disk in 1024 and 2048 PPR
? New seals and gasketed cover for IP67 rating
? Electrically isolated and Thermally insulated
? Hazardous Location Certification Available
HS35系列
?密封的空心軸設計省去了安裝支架，靈活的聯軸器和安裝工作
?重新設計的一體式輪轂，減少了跳動和抖動
?最多可容納1-1 / 4“直徑的軸
?1024和2048 PPR的新的更堅固，不可破壞的磁盤
?新的密封件和襯墊蓋達到IP67等級
?電氣絕緣和隔熱
?提供危險場所認證
DESCRIPTION
The Series HS35 Sealed Hollowshaft is equipped with an unbreakable disk that meets the demands of the most severe shock and vibration generating processes. Its floating shaft mount and spring tether eliminate bearing loads and flexible shaft couplings to eliminate wear and maintenance.
Series HS35 has complete electrical protection from overvoltage, reverse voltage, and output short circuits. In addition, the Series HS35 is not only electrically & thermally isolated, but also environmentally sealed with shaft seals at both ends.
描述
HS35系列密封空心軸配有堅固的圓盤，可以滿足最嚴峻的沖擊和振動產生過程的要求。 它的浮動軸安裝座和彈簧系鏈消除了軸承負載，并消除了撓性聯軸器的磨損和維護。
HS35系列具有完整的電氣保護，可防止過壓，反向電壓和輸出短路。此外，HS35系列不僅電氣和熱絕緣，而且兩端均采用軸封進行環境密封。

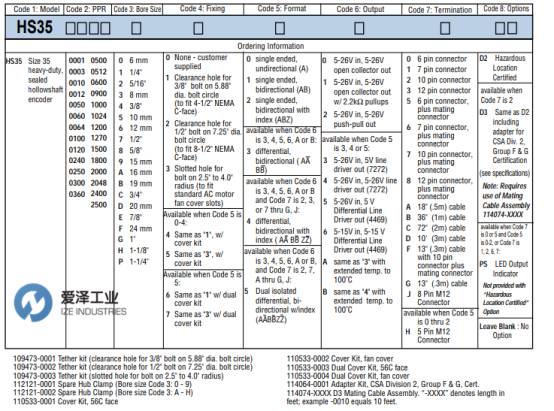

DYNAPAR編碼器HS35系列產品介紹及選型
DYNAPAR編碼器HS35系列其他常用型號
DYNAPAR HS351024844B7
DYNAPAR HS350240G54B7
DYNAPAR HS350240G5467
DYNAPAR HS350240G5342
DYNAPAR HS350240G44B7D2
DYNAPAR HS350240G34BC
DYNAPAR HS350240G344B
DYNAPAR HS350240G336D
DYNAPAR HS350240G334D
DYNAPAR HS350240G3342
DYNAPAR HS350240G3341
DYNAPAR HS350240G3331
DYNAPAR HS350240G3125
DYNAPAR HS350240G3121
DYNAPAR HS350240G3000
DYNAPAR HS350240G14B7
DYNAPAR HS350240G134B
DYNAPAR HS350240G1345
DYNAPAR HS350240G1220
DYNAPAR HS350240G100B
DYNAPAR HS350240G1005
DYNAPAR HS350240G0447
DYNAPAR HS350240G0220
DYNAPAR HS350240G002A
DYNAPAR HS350240G000D
DYNAPAR HS350240G0000
DYNAPAR encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DYNAPAR編碼器HS350240G112H的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for DYNAPAR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
DYNAPAR編碼器HS35系列HS350240G112H電氣及機械參數
