ORBITAL振動傳感器ORBIVIB2系列產品參數
Specification | ||
Area | Value | Variable |
Power Supply | Supply Voltage | 24 VDC (m Power Consumption 3 W (max.) |
Power Consumption | 3 W (max.) | |
Relay output | Switching voltage | 250 VAC / 30 VDC (max.) |
Switching current | 0,01 AAC / ADC (min.) – 5/5 AAC / ADC (max.) | |
Scan cycle | 100 msec | |
Digital / Counter inputs | Input impedance | 4400 Ohm |
Low input level | 0 VDC (min.) – 8 VDC (max.) | |
High input level | 24 VDC (min. 16.0 – max. 40.0) | |
Input frequency | 1 Hz (min.) – 300 Hz (max.) | |
Profibus | Baud rate | 9600 Baud (min.) – 12M Baud (max.) |
Accelerometer | Cable length | 10 m (max. 20) |
Acceleration range | +/- 14 m/s2 | |
Frequency range | 0,1 Hz (min.) – 100 Hz (max.) | |
Filter bandwidth | 0,1 Hz (min.) – 10 Hz (max.) | |
Area | Value | Variable |
Storage and operation area | Operating temperature | -40… 50oC |
Storage temperature | -40… 85oC | |
Humidity | 0-95% RHD non condensing | |
Environment module | IP20 | |
Environment sensor | IP65 |

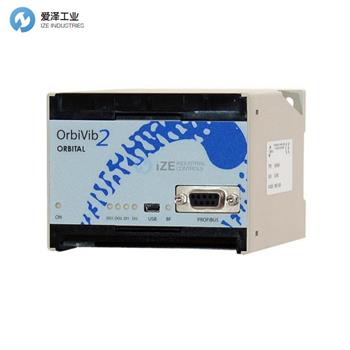

ORBITAL振動傳感器IEC-ORBIVIB-24VDC產品介紹
OrbiVib2設計用于頻率范圍為0.1-100赫茲的振動測量。最多可使用8個獨立的可配置頻帶來監測和監督感興趣頻率范圍內的加速度。每個頻帶可單獨配置帶通濾波器參數、振動過量值和反應時間。
OrbiVib2模塊提供2個數字轉速輸入，也可以用作編碼器輸入。兩個繼電器輸出可單獨編程以激活轉速或/和振動過量。一個集成的100個樣本深度數據/跟蹤記錄器將捕獲所有相關信息，以防過量，并將其與時間戳一起保存在非易失性存儲器中。通過USB端口，可以使用第三方程序，如Matlab?或Octave?導出這些數據并計算FFT。Profibus-DP或USB接口均可用于OrbiVib2系統的配置、監控和控制。
此外，在配置之后可以進行獨立操作。GSD[E]文件向主機提供有關模塊和數據協議的所有必要信息。
OrbiVib 2 is designed for vibration measurements in the frequency range 0-100 Hz. Up to 8 independent configurable frequency bands can be used to monitor and supervise accelerations in the frequency range of interest. The band-pass filter parameters, the vibration excess values and the reaction times can be configured individually for each frequency band. The OrbiVib 2 module provides 2 digital RPM inputs, which also can be used as an encoder input.
Two relay outputs are individually programmable for activation of RPM or/and vibration excess. An integrated 100 samples deep data/trace logger will capture all relevant information in case of an excess and will save it together with a time stamp in a non-volatile memory.
Either the Profibus DP or the USB interface can be used for configuration, monitoring and controlling of the OrbiVib 2 system. In addition a stand-alone operation after configuration is possible.
A GSD[E] file provides the master with all needed information about the module and the data protocol.
ORBITAL振動傳感器IEC-ORBIVIB-24VDC其他常見型號：
ORBITAL OrbiVIB 3
ORBITAL OrbiVIB 2
ORBITAL TMC3
ORBITAL TMC2
