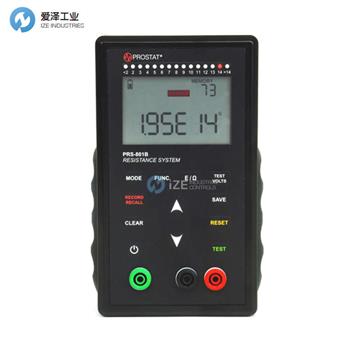

PROSTAT電阻計PRS-801B技術參數
Characteristics | |
Measuring Range | 0.01 ? to 2.00 x 1014 ? |
Measurement Modes | Auto, Manual, Auto-Manual, Continuous |
Display | 6.9 cm x 4.8 cm (2.7” x 1.9") |
Battery Power | Re-chargeable Li-Ion battery (included). |
Battery Charging | Rechargeable via USB 2.0 through PC port or Wall Charger (included) |
Battery Charge Indicator | Battery has a status indicator on instrument screen |
Battery Charging Time | 2 hours |
Battery Life | 480 hours typical |
Memory Capacity | 999 data sets |
Memory Data Sets | Data sets include resistance, test voltage, electrification period and timestamp. |
Data Download | Compatible with Connect 2.0 |
USB | USB 2.0 A to Micro-B |
Operating Temperature | 10°C to 30°C (50°F to 80°F) |
Operating Relative Humidity | 0% – 85%, non-condensing |
Operating Altitude | 2000 m |
Storage Temperature | -30°C to +60°C (-22 °F to +140 °F) |
Dimensions (WxHxD) | 117 mm x 188.5 mm x 48 mm |
Weight | 510 g (1.12 lb) |
Case Material | Polycarbonate with Rubber Side Grips |
Color | Black |
PROSTAT電阻計PRS-801B產品介紹
? 精確的寬范圍電阻測量：0.01 Ω 至 2.00x10 14 Ω
? 1.00 Ω 至 9.99x10 10 Ω精度為 ±2%
? 用于低電阻測量的可變電壓 0.1 mv 至 9.99 V
? 恒定測試電壓 10V 和 100V 符合 ANSI/ESD S20.20
? 自動電阻范圍控制
? 自動測試電壓控制
? 使用可充電鋰離子電池組
? 一次充電可進行約 8,000 次測量（典型值 480 小時）
? 999 個數據集內存
? 使用 Prostat Connect 2.0 批量或單獨下載到 Excel?
? 使用 Micro USB 線充電和下載數據
? 2 小時即可充滿電
? Accurate Wide Range Resistance Measurements: 0.01 ? to 2.00x1014 ?
? Accuracy of ±2% from 1.00 ? to 9.99x1010?
? Variable Voltage 0.1 mv to 9.99 V for low resistance measurements
? Constant Test voltages 10V and 100V meeting ANSI/ESD S20.20
? Auto Resistance Range Control
? Auto Test Voltage Control
? Uses a Rechargeable Li-ion Battery Pack
? Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
? 999 Data Set Memory
? Download to Excel? in Batches or Individual Measurements with Prostat Connect 2.0
? Uses Micro USB Cable for Charging and Downloading Data
? Charges in 2 Hours
PROSTAT電阻計PRS系列其他常用型號：
PROSTAT PRS-801B
PROSTAT PRS-801RM
PROSTAT PRS-812B
PROSTAT PRS-812RM
PROSTAT Resistance Meter NEW + ORIGINAL+ ONE YEAR WARRANTY
