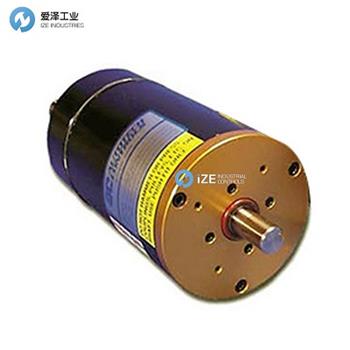

AUTOTECH CONTROLS編碼器SAC-RL100-M11產品參數
Specification | |
Frequency | 2250 Hz |
Input voltage | 1.88 V |
Input current | 6 mA |
Input power | 6.5 mW watts |
Rotor impedence with stator | |
Open circuit ZL0 | 180+ j256 ohms |
DC resistance (Rotor) | 18.3 ohms |
Output voltage (Stator) | 2.63 V +/- 5% |
Transformation ratio | 1.400 |
Resolver | SAC-RL100 |
Housing Size | Size 40(4.02 dia.) |
Max. Stating Torque @ 25 deg. C (oz-in) | 8 |
Moment of Inertia (gm/cm2) | 45 |
Max. Slew Speed (RPM) | 5000 |
Shaft Size | 5/8" |
Max. Shaft Loading | |
Axial (lbs) | 50 |
Radial (lbs) | 100 |
Bearing life at Max. Mfr. Spec. (Rev.) | 2x109 |
Approx. Weight (lbs) | 6 |
Shock | 200g for 11 mSec. |
Vibration | 20g to 2000Hz |
Operating Temperature | -67 to 248° F |
Storage Temperature | -85 to 302° F |
Enclosure | NEMA 13 |
AUTOTECH CONTROLS編碼器SAC-RL100-M11產品介紹
AVG Automation的RL100型解析器是當今行業中最堅固的解析器。
AVG Automation's model RL100 resolver is the most rugged resolver in the industry today.
