POSITEK傳感器X111系列產品參數
Specification | |
Intrinsic Safety | |
ATEX/IECEx approval | The sensor is ATEX/IECEx approved to: |
Galvanic Isolation Amplifier | Intrinsically safe sensors must be used with a galvanically isolated amplifier with safety parameters not exceeding:- Ui: 11.4V, Ii: 0.2A, Pi: 0.51W. Sensor can be installed with a cable length up to 1000m maximum from the amplifier, cable capacitance and inductance can be up to:- Capacitance: 200 nF max, Inductance: 810 μH max. |
Dimensions | |
Body Diameter | 35mm |
Body Length (Axial version) | Measurement length + 163mm |
Body Length (Radial version) | Measurement length + 186mm |
Push Rod Extension | Measurement length + 7mm |
Travel | Any stroke from 0-5mm to 0-800mm (e.g. 305mm) |
Independent Linearity | <±0.25% up to 450mm |
Temperature Coefficient | <±0.01%/°C Gain & <±0.01%FS/°C Offset |
Resolution | Infinite |
Noise | <0.02% FSO |
Frequency Response | >10KHz (-3dB) |
Temperature Limits | |
Operating | -40 to +80°C |
Storage | -40 to +125°C |
Other | |
EMC Susceptibility | EN 61000-6-2 |
EMC Radiated | EN 61000-6-3 |
Vibration | IEC 68-2-6: 10g |
Shock | IEC 68-2-29: 40g |
MTBF | 350,000 hrs 40°C Gf |
Sealing | IP65 (connector) / IP67 (cable) |
Electrical Connections | Screened cable or integral connector |
POSITEK傳感器X111系列產品介紹
本質安全型X111已通過ATEX和IECEx認證，可用于潛在爆炸性氣體/蒸氣環境。X101傳感器的這種重型版本具有更強的12.6mm推桿，推薦用于振動或需要更長行程傳感器，水平安裝并支撐在桿眼之間的應用。它仍然是為工業和科學反饋應用設計的價格合理，耐用，高精度的位置傳感器。該裝置高度緊湊且節省空間，幾乎可以響應整個長度。像所有Positek傳感器一樣，X111提供與位移成比例的線性輸出。每個傳感器都提供根據客戶要求的行程進行校準的輸出，從0-5mm到0-800mm，并且內置了完整的EMC保護。
傳感器非常堅固，閥體和推桿均由不銹鋼制成，使用壽命長且耐環境腐蝕。在很寬的溫度范圍內，總體性能，可重復性和穩定性都非常出色。該傳感器易于安裝，安裝選項包括M8桿眼軸承和車身夾具。推桿可免費提供或帶有M8內螺紋，M8桿眼或圓頂端固定，可向任一方向彈跳加載的推桿裝載在行程最大300mm的傳感器上。根據所選的電纜或連接器選件，環境密封等級達到IP65或IP67。
Positek本安傳感器設計為與電隔離放大器一起使用?？梢詮腜ositek 獲得批準的電流隔離放大器（X005）?？蛇x擇0.5-9.5V或4-20mA傳輸輸出。
傳感器與放大器之間的電纜長度最長為1km。

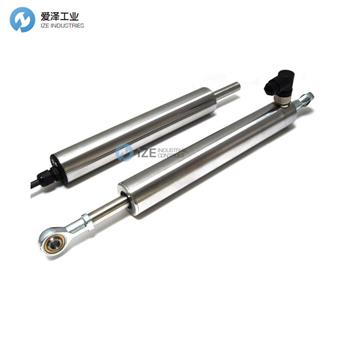

The intrinsically safe X111 is ATEX and IECEx approved for use in potentially explosive gas/vapour atmospheres. This heavy-duty version of the X101 sensor with a stronger 12.6mm push rod, recommended for applications where vibration is an issue or there is a need for longer travel sensors, mounted horizontally, and supported between rod eyes. It remains an affordable, durable, high-accuracy position sensor designed for industrial and scientific feedback applications. The unit is highly compact and space-efficient, being responsive along almost its entire length. Like all Positek sensors, the X111 provides a linear output proportional to displacement. Each sensor is supplied with the output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in.
The sensor is very robust, the body and push rod being made of stainless steel for long service life and environmental resistance. Overall performance, repeatability and stability are outstanding over a wide temperature range. The sensor is easy to install with mounting options including M8 rod eye bearings and body clamps. The push rod can be supplied free or captive, with female M8 thread, an M8 rod eye, or dome end, Captive push rods can be sprung loaded, in either direction, on sensors up to 300mm of travel. Environmental sealing is to IP65 or IP67, depending on selected cable or connector options.
Positek intrinsically safe sensors are designed to be used with a galvanically isolated amplifier . Approved galvanic isolation amplifiers (X005) are available from Positek; there is a choice of 0.5-9.5V or 4-20mA transmission outputs.
The sensor can be installed with a cable length up to 1km between the sensor and the amplifier.
選型參考

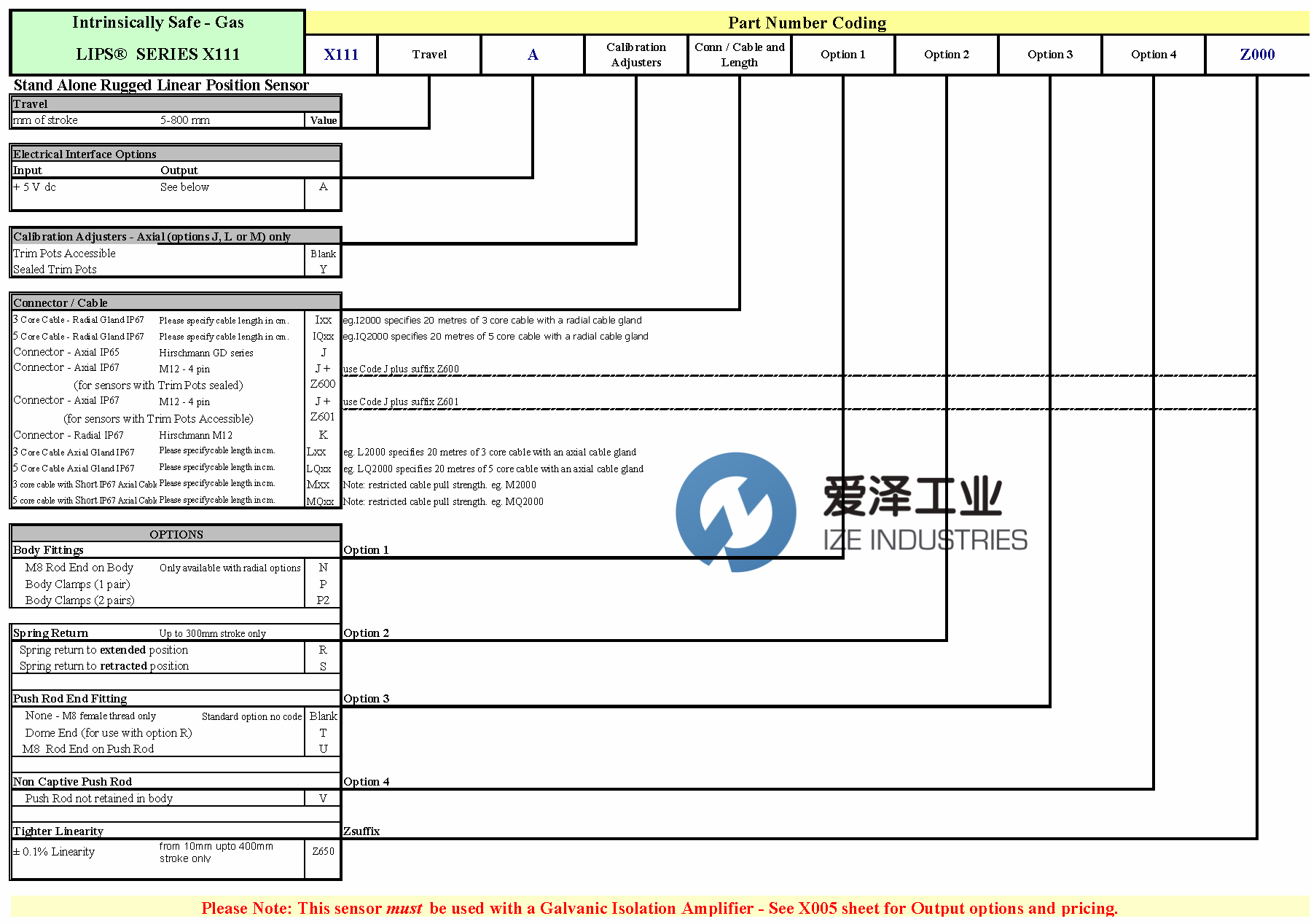

POSITEK傳感器X111.600AI1000NSUZ375其他常見型號：
POSITEK X101
POSITEK X103
POSITEK X106
POSITEK X120
POSITEK X125
POSITEK X130
POSITEK E100
POSITEK E101
POSITEK E103
POSITEK P100
POSITEK P101
POSITEK X111.600AI1000NSUZ375
