AMCI編碼器H25-FE-10技術參數
SPECIFICATIONS | |
ELECTRICAL | |
Input Voltage: | 7.0 V |
Input Freq: | 5000 Hz |
Primary: | Rotor |
Input Current: | 20.0 mA Max. |
Output Voltage: | 6.65 V Nom. |
Trans. Ratio (TR): | 0.95土5% |
Accuracy: | 土12 min. (max error) |
MECHANICAL | |
Shaft Loading: | Radial: 40 lbs. maxt. |
Starting Torque: | 2.0 oz.in. @ 25°C |
Moment of Inertia: | 6.00X10-4 oz-in-sec2 max. |
Weight: | 1.3 lb. |
Bearing life rated at 2X 109 revolutions min.at maximum shaft load. | |
ENVIRONMENTAL | |
Shock: | 50 g's for 11 mSec |
Vibration: | 15 g's to 2000 Hz |
Operating Temp: | -20 to 125°C |
Enclosure: | IP67. |
Power Coated Aluminum Body 303 Stainless Steel Shaft Nitrile Shaft Seal | |
AMCI編碼器產品簡介
DESCRIPTION

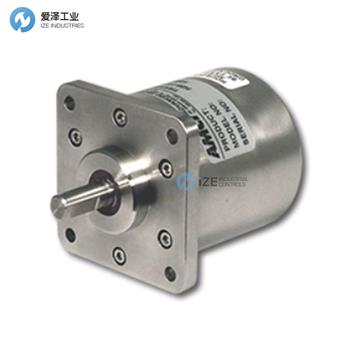

The H25-FE is an AMCI size 25, flange mount,single turn transducer with an end connector that is a bolt-in replacement for most flange mount optical encoders. Its IP 67 rating means it will survive most industrial applications including washdowns. Because this transducer is a resolver instead of an optical encoder, it can be used in harsh applica-tions where an optical encoder cannot even be considered.
The outine drawing below details our standard unit with a 3/8" shaft. This transducer is also available with a 1/4" or 10mm shaft or a 3/8" shaft with a three millimeter keyway under the following part numbers. Dimensional drawings of these shafts are on the next page.
H25-FE-03: 1/4" Dia. Shaft
H25-FE-06: 3/8" Dla. Shaft with 3mm Keyway
H25-FE-10: 10mm Dia. Shaft
Because the H25-FE is an absolute sensor, it cannot "lose counts" as an incremental transducer can. If the H25-FE appears to be losing counts when operating, the usual cause is a shaft slipping in a loose coupler.
描述
H25-FE是一款 AMCI 尺寸 25、法蘭安裝、帶端部連接器的單圈傳感器，是大多數法蘭安裝光學編碼器的螺栓替代品。 其IP 67防護等級意味著它可以承受大多數工業應用，包括沖洗。因為該傳感器是旋轉變壓器而不是光學編碼器，所以它可以用于甚至不能考慮使用光學編碼器的嚴苛應用。
下面的外形圖詳細說明了我們帶 3/8" 軸的標準裝置。該傳感器還提供 1/4" 或 10mm 軸或帶三毫米鍵槽的 3/8"軸，零件號如下。尺寸圖 這些軸在下一頁上。
H25-FE-03：1/4" 直徑軸
H25-FE-06：3/8" Dla. 帶 3mm 鍵槽的軸
H25-FE-10：10 毫米直徑。
因為 H25-FE 是絕對傳感器，所以它不會像增量傳感器那樣“丟失計數”。 如果 H25-FE 在運行時出現計數丟失，通常的原因是軸在耦合器中打滑。
AMCI編碼器其他常用型號：
AMCI H25-FE-03
AMCI H25-FE-05
AMCI H25-FE-06
AMCI H25-FE-10
AMCI encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMCI編碼器H25-FE-10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
