MICRO DETECTORS傳感器BX80S/3P-0H產品參數
specification | |
nominal sensing distance Sn | 1 m |
response time | max. 3 ms |
controlled height | 70 mm |
n° of beams | 12 |
beam pitch | 6 mm |
minimum detectable object | ? 6 mm (BX80A/4), ? 2 mm (BX80B/4), ? 3 mm (BX80D/4) |
minimum operating distance | 30 (BX80A/4), 90 mm (BX80B/5), 550 mm (BX80B/4) |
hysteresis | max.15% |
repeatibility | 0.05 |
tolerance | 0/20% of the nominal sensing distance Sn |
operating voltage | 12-24 Vcc (standard) |
ripple | 0.1 |
no-load supply current | 50 mA (receiver), 100 mA (emitter) |
load current | 100 mA max |
leakage current | 10 μA (at max operating voltage) |
voltage drop | 1.2 V max. (IL = 100 mA) |
output type | NPN or PNP- NO/NC selectable |
connection | M12 plug 4 pins cable 2 m |
excess gain | 2° (at nominal distance Sn) |
angular displacement | 3° (emitter) - 6° (receiver) at Sn distance |
emission | infrared (880 nm) |
power on delay | 500 ms |
power supply protections | reversal polarity and voltage transient |
output protections | short circuit (auto reset) |
operating temperature range | -25°...+50°C (without freeze) |
storage temperature | -40°...+80°C |
temperature drift | 10% Sr |
external light | 1,500 lux max. (incandescent lamp), 4,500 lux max. (sunlight) |
IP mechanical protection | IP67 (EN 60529) - IP69K (special models) |
emitter LED | green (supply), red (alarm sync.), yellow (area state) |
receiver LED | green (supply), red (alignment), yellow (output state) |
housing material | PBT (PC 9K version) |
lens materal | PC |
tightening torque | 25 Nm max. |
wight (approximate) | 260...300 g connector / 800...820 g cable |

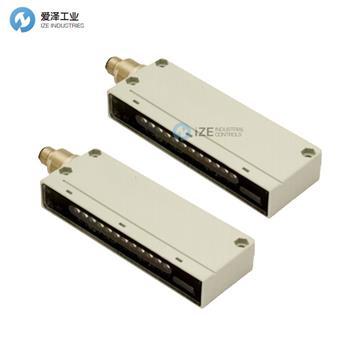

MICRO DETECTORS傳感器BX80S/3P-0H產品介紹
特征
?控制高度70毫米
?工作距離長達2 m
?基于微處理器的電路
?靈敏度調整
?堅固的立方外殼
?特殊版本帶有金屬外殼，適合高負荷使用
?防護等級IP67
?全面保護免受電氣損壞
features
? Controlled heightt 70 mm
? Operating distance up to 2 m
? Microprocessor based circuit
? Sensitivity adjustment
? Strong cubic housing
? Special version with metallic enclosure for high-duty use
? Protection degree IP67
? Complete protection against electrical damages
MICRO DETECTORS傳感器BX80S/3P-0H其他常見型號：
MICRO DETECTORS BX80S/10-0H
MICRO DETECTORS BX80S/20-0H
MICRO DETECTORS BX80S/30-0H
MICRO DETECTORS BX80S/40-0H
MICRO DETECTORS BX80S/50-0H
MICRO DETECTORS BX80S/10-1H6X
MICRO DETECTORS BX80S/20-2H
MICRO DETECTORS BX80S/30-2H
MICRO DETECTORS BX80B/50-2H3E
MICRO DETECTORS BX80B/1P-1H6X
MICRO DETECTORS BX80B/3P-1H
MICRO DETECTORS BX80A/4P-1H
MICRO DETECTORS area sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICRO DETECTORS傳感器BX80S/3P-0H的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICRO DETECTORS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
