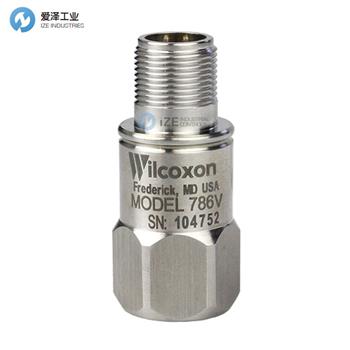

WILCOXON速度傳感器786V產品參數
Specification | 786V |
Sensitivity (mV/in/sec) | 100 |
Sensitivity tolerance (±) | 5% |
Velocity range (in/sec peak) | 50 |
Amplitude nonlinearity | 1% |
Frequency response (Hz, ±10%) | 2-6,000 |
Frequency response (Hz, ±3dB) | 1-12,000 |
Resonance frequency (kHz) | 30 |
Transverse sensitivity | 5% max |
Broadband noise (μin/sec) | 2,050 |
Spectral noise 10 Hz (μin/sec/√Hz) | 250 |
Spectral noise 100 Hz (μin/sec/√Hz) | 12 |
Spectral noise 1,000 Hz (μin/sec/√Hz) | 5 |
Output impedance, nominal (?) | 200 |
Bias Output Voltage (VDC) | 12 |
Temperature Range (°C) | -50 to 120°C |
Vibration Limit (g) | 500 |
Shock Limit (g) | 5,000 |
Weight (grams) | 90 |
Case material | 316L stainless steel |
WILCOXON速度傳感器786V產品介紹
The new, lower-cost 786V velocity sensor captures the frequency range of most common machine faults, in a lighter-weight, more compact housing than legacy velocity sensors.
With a wide frequency response range (1-12,000 Hz at +/- 3dB), the 786V can capture signs of the most common developing faults - imbalance, misalignment, looseness - on rotating machines. A 100 mV/in/sec sensitivity and +/-5% sensitivity tolerance make for excellent measurement accuracy, and the sensor's rugged design ensures long-term reliability in industrial installations.
Key features and benefits
Velocity vibration measurements can be easily compared against ISO standards
Ideal for monitoring common mid-frequency faults – imbalance, misalignment, looseness
Eliminates noise influences from external integrators
More compact size than legacy sensors
Lower cost without loss of reliability or performance
新型低成本 786V 速度傳感器可捕獲最常見機器故障的頻率范圍，其外殼比傳統速度傳感器更輕、更緊湊。
786V 具有較寬的頻率響應范圍（+/- 3dB 時為 1-12,000 Hz），可以捕獲旋轉機器上最常見的發展中故障的跡象 - 不平衡、未對準、松動。 100 mV/in/sec 的靈敏度和 +/-5% 的靈敏度容差可實現出色的測量精度，并且傳感器的堅固設計可確保在工業安裝中的長期可靠性。
主要特點和優勢
速度振動測量可以很容易地與 ISO 標準進行比較
非常適合監測常見的中頻故障——不平衡、未對準、松動
消除外部積分器的噪聲影響
比傳統傳感器更緊湊的尺寸
在不損失可靠性或性能的情況下降低成本
WILCOXON速度傳感器其他常見型號：
WILCOXON 786V
WILCOXON 793V
WILCOXON 797V
WILCOXON 793VR
WILCOXON 793V100-5
WILCOXON 793V-5
WILCOXON 893V
