GPI流量表TM050-N產品參數
Specification | |
Manufacturer's Warranty | 12 months parts / 12 months labor |
Ship Weight | 2.0 lbs |
Flow (GPM) | 1–10 |
Operating PSI | 225 at 73°F |
Inlet Port (in.) | 1/2 |
Outlet Port (in.) | 1/2 |
Temperature Capacity (°F) | 32–140 |
LCD Display | Yes |
Dimensions L x W x H (in.) | 7 x 5 x 5 |
GPI流量表TM050-N產品介紹
此GPI 1 / 2in。電子水表是傳統水表的精確和經濟的替代品。對于1到10 GPM的流速，精確到讀數的+/- 3％。幾乎所有水應用的理想選擇，系統中無空氣，包括水處理，灌溉和分計量。儀表的尺寸應符合所需的流速，而不是所需的管道尺寸。CE認證。
特色+優點
提供準確的批次總量，累計總量和流量
符合Schedule 80規范
易于安裝的設計
薄型顯示器由2節鋰電池供電
顯示加侖和升的讀數
工廠校準專門用于水
耐用的結構包括PVC外殼，陶瓷軸承，碳化鎢軸，PVDF轉子和316不銹鋼環
用于農業噴霧器，商用混合罐，肥料罐和任何高容量水混合應用
重量輕，易于安裝
更換電池或斷電時，總計不會重置
適用于OEM水處理設備/滑板，設施用水的分計量，小型廢水處理設備和水基冷卻系統
現場校準模式可用于提高精度
鋰電池可現場更換，使用壽命為五年

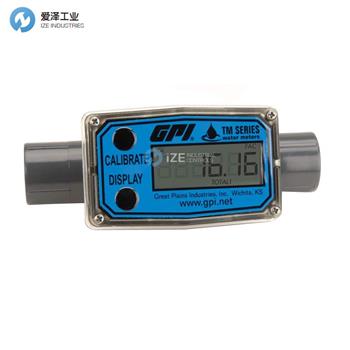

This GPI 1/2in. Electronic Water Meter is an accurate and economical alternative to traditional water meters. Accurate to +/-3% of reading for flow rates from 1 to 10 GPM. Ideal for almost any water application with no air in the system, including water processing, irrigation and sub-metering. Meter should be sized to desired flow rate, not desired pipe size. CE approval.
Features + Benefits
Delivers accurate batch total, cumulative total and rate of flow
Meets Schedule 80 specifications
Easy to install design
Low-profile display is powered by 2 lithium batteries
Displays readings in both gallons and liters
Factory calibrated specifically for use with water
Durable construction includes PVC housing, ceramic bearings, Tungsten carbide shaft, PVDF rotor and 316 stainless steel rings
For use with agricultural sprayers, commercial mixing tanks, fertilizer tanks and any high volume water mixing application
Lightweight and easy to install
Totals do not reset when batteries are replaced or power is lost
Ideal for use with OEM water treatment equipment/skids, sub-metering of facility water usage, small waste water treatment equipment, and water based cooling systems
Field calibration mode is available for increased accuracy
Lithium batteries are field replaceable and have a five year life
GPI流量表TM050-N
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件GPI 流量表部分型號：
GPI TM050
GPI TM050-P
GPI TM075
GPI TM075-P
GPI TM100
GPI TM100-P
GPI TM150
GPI TM150-P
GPI TM200
GPI TM200-P
GPI TM050-N
GPI TM050-N-P
GPI TM075-N
GPI TM075-N-P
GPI TM100-N
GPI TM100-N-P
GPI TM150-N
GPI TM150-N-P
GPI TM200-N
GPI TM200-N-P
GPI TM100-B
GPI TM100-B-P
GPI TM150-B
GPI TM150-B-P
GPI TM200-B
GPI TM200-B-P
