MOORE INDUSTRIES變送器FDY/PRG/4-20MA/12-42DC技術參數
PRODUCT DETAILS | |
Input | PRG |
Output | 4-20mA |
Power | 12-42DC |
Input Description | Programmble for Frequency, Pulse, Period or Contact Closure |
Output Description | 4-20mA |
Power Description | 12-42DC, Output loop powered |
Housing Description | 2-Hub, explosion-proof enclosure with glass cover with 2" pipe mount bracket |
HART Signal Pass-through Capability | No |
For use in Safety Instrumented Systems (SIS) | No |
Number of Inputs | 1 |
Input Type | Frequency |
Number of Outputs | 1 |
Device Power | 2-Wire, Loop Powered |
Integral Display | Yes |
Alarm/Relay Output | No |
Configuration/Setup | PC Programmable, USB Cable |
Enhanced RFI/EMI Immunity | No |
Housing/Enclosure | Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure |
2" Pipe Mount Bracket | Yes |
Field Enclosure Conduit Connection | Standard (NPT) |
Hazardous Area Certifications | Explosion Proof, Flameproof, Non-Incendive/Div. 2, Zone 2 |
RoHS Compliant | Yes |
MOORE INDUSTRIES變送器介紹
描述
FDY PC-可編程頻率轉直流傳輸器帶顯示屏，可監測頻率、周期、高低脈沖寬度及觸點閉合信號。它將輸入信號轉換為比例的、輸入到輸出隔離的4-20mA輸出，能直接與讀數儀、記錄儀、PLC、DCS、SCADA系統或其他讀數儀器接口。
2線環路供電的FDY非常適合在各種過程和工廠自動化監控應用中使用，包括：
? 渦輪測速發電機
? 渦輪流量計
? 磁性拾波器
? 干觸點閉合
? 變頻驅動器
? 轉動設備
? 脈沖和頻率輸出傳感器
? 電動機和輸送機速度
特點
卓越的精度和長期穩定性。典型精度為±0.025%的量程，校準周期最長可達5年。
使用PC軟件幾分鐘內即可配置。用戶可以選擇參數并確認所有應用特定的操作參數。
輸入選項豐富。測量頻率范圍從極低的0.005Hz到高達25kHz；周期范圍從40微秒到200秒；脈沖寬度范圍從0.2毫秒到200秒。
用戶可配置的顯示屏。5位LCD顯示過程變量，單位可選。
輸入到輸出隔離，具有抗RFI/EMI保護。能抵抗不可預料的接地環路和設備“噪聲”的有害影響。
可編程移動平均濾波器。減少由彎曲渦輪葉片等頻率變化引起的測量不穩定。
Description

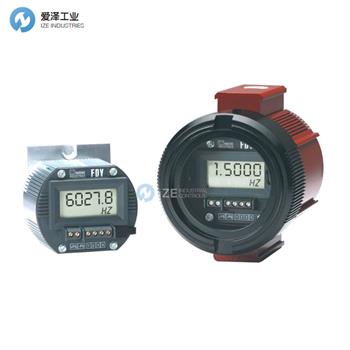

The FDY PC-Programmable Frequency-to-DC Transmitter with Display monitors frequency, period, high or low pulse width, and contact closure signals. It converts the input signal to a proportional, input-tooutput isolated 4-20mA Output ready for direct interface with a readout instrument, recorder, PLC, DCS, SCADA system or other readout instrument.
The 2-wire (loop-powered) FDY is ideal for use in a wide range of process and factory automation monitoring applications:
? Turbine Tachometer Generators
? Turbine Flow Meters
? Magnetic Pickups ? Dry Contact Closures
? Variable Frequency Drives ? Rotating Equipment
? Pulse and Frequency Output Transducers
? Motor and Conveyor Speed
Features
? Exceptional accuracy and long-term stability.Typical accuracy is ±0.025% of span with up to 5 years between scheduled calibrations.
? Sets up in minutes with PC software. You can choose, and then view to confirm, all applicationspecific operating parameters.
? Versatile input choices. Measures frequency ranges between an amazingly low 0.005Hz up to 25kHz; periods from 40microseconds to 200sec; and pulse widths from 0.2msec to 200 seconds.
? User-configurable display. A 5-digit LCD shows the process variable in selectable engineering units.
? Input-to-output isolated and RFI/EMI protected. Resistant to unpredictable ground loops and the harmful effects of plant and equipment “noise”.
?Programmable moving average filter. Minimizes measurement instability caused by the effects of bent turbine blades and other frequency variations.
