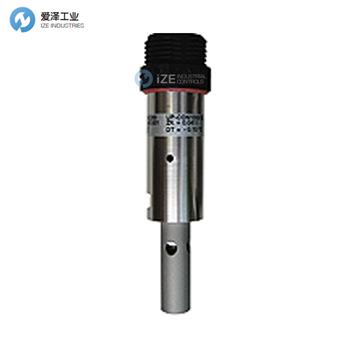

SWAN電導率傳感器 UP-CON1000系列技術參數
Specifications | |
Recommended measuring range | 0.055 μS/cm to 30 mS/cm |
Accuracy (at 25°C) | ± 1% |
Cell constant | ~ 0.04 cm-1 |
Temperature sensor type | Pt1000, DIN class A |
Continuous temperature | 100 °C at 6.5 bar |
Max. temperature | 120 °C at 6.5 bar |
Pressure | max.30 bar at 25 °C |
Shaft | Stainless steel SS 316L |
Electrode | Titanium |
Isolation | PEEK |
Process connection & sensor mounting: | SWAN slot-lock (patent pending) for quicksensor release in suitable flow cells or NPT ?” |
Electrical connection | Male Plug M1 (protection degree IP67) or directly attached cable with end sleeves |
SWAN電導率傳感器 UP-CON1000系列產品描述
雙電極電導率傳感器，適用于水/蒸汽循環應用中的連續測量。
該電導率傳感器采用不銹鋼外殼、鈦電極和內置溫度探頭，可實現自動溫度補償。
建議測量范圍：0.055 μS/cm 至 30 mS/cm
Two-electrode conductivity sensor for continuous measurement in water/steam circulation applications.
The conductivity sensor features a stainless steel housing, titanium electrodes and a built-in temperature probe for automatic temperature compensation.
Recommended measurement range: 0.055 μS/cm to 30 mS/cm
SWAN電導率傳感器UP-CON1000系列其他常用型號：
SWAN A-87.334.170
SWAN A-87.334.100
SWAN A-87.334.200
SWAN A-87.334.210
SWAN A-87.334.250
SWAN A-87.334.270
SWAN A-87.334.150
SWAN Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SWAN電導率傳感器A-87.334.150的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SWAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
SWAN電導率傳感器 UP-CON1000系列A-87.334.150技術參數
