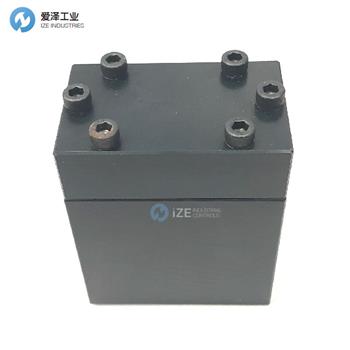

DAMCOS補償閥160G0510介紹
基本上,閥門位置指示器是一個精密齒輪馬達,它帶有一個顯示器,用于顯示通過裝置的特定油體積的流動。齒輪根據流體的流動和流動方向旋轉。內置的小型齒輪箱具有適合執行器位移的齒比,將齒輪馬達的運動傳遞給指示器軸。齒輪馬達和指示器軸之間沒有機械連接。
液壓齒輪的旋轉運動通過磁力離合器傳遞給指示器軸,這消除了可能的外部泄漏。指示箭頭在一個可調節的刻度角范圍內移動,該范圍在75°到200°之間。安裝在指示器軸上的小指示盤(流量指示)用作泄漏指示器。
這只是完整VPI(閥位指示器)裝置的底部部分,可適用于:
VPI-V: 提供視覺指示
VPI-E: 提供視覺加電氣開/關指示(開關)
VPI-C: 提供視覺加電氣模擬指示(電位計)
VPI-CE: 提供雙重電氣功能C+E
VPI-EE: 提供雙重電氣功能E+E
(特殊版本可安裝在防爆區域,并配備電纜。)
Basically the valve position indicator is a precision gear motor with a display indicating the flow of a certain oil volume through the unit. The gear wheels rotate according to flow and flow direction of the fluid. A built-in mini gear box with a gear ratio chosen to suit the actuator displacement in question transfers the gear motor movement to the indicator shaft. There is no mechanical connection between the gear motor and the indicator shaft.
The rotary movement of the hydraulic gear wheels is transferred to the indicator shaft by a magnetic clutch. This eliminates possible external leakages. An indicator arrow moves within a scale angle which is adjustable between 75° and 200°. A small indicator disc (flow indication) mounted firmly on the indicator shaft serves as leakage indicator.
This is the bottom part only of the complete VPI setup and will fit:
VPI-V: Visual indication
VPI-E: Visual + electrical open/closed indication (switches)
VPI-C: Visual + electrical analog (potentiometer) indiction
VPI-CE: Double electrical function C+E
VPI-EE: Double electrical function E+E
(Special versions may be mounted in Ex area and are equipped with cable.)
DAMCOS補償閥其他常用型號:
160G0510
DAMCOS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
