BAUMER編碼器HMG10P系列技術參數
Parameterization 1) | |
SSI absolute signals | Singleturn, multiturn position and speed information with 20 bit resolution each |
Incremental output 1/II | ≤131 072 ppr (one output with zero pulse) |
Speed switch | Switch on / off speed both in positive and negative direction of rotation; 2 ... 12 000 rpm |
Monitoring 2) | |
Absolute position | Singleturn and multiturn |
Speed | 0 ... ±12000 rpm |
Temperature | Encoder with temperature sensor inside |
Diagnostics | Encoder parameter download |
Accessories | |
Programming adapter | Programming with integrated web server for wireless LAN- and Ethernet-enabled access, integrated power unit |
Connecting cable | Prefabricated cable for programming adapter, suitable for encoders with terminal box or female M23 connector outlet |
BAUMER編碼器HMG10P系列介紹

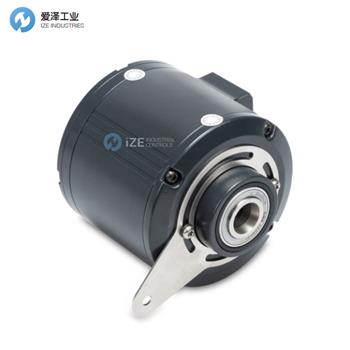

HMG10P / PMG10P 智能型重載編碼器
型號更少，成本更低
HMG10P / PMG10P 智能型編碼器可在惡劣環境中提供用于轉速控制的位置 信息與轉速信號。新增功能:通過無線局域網(WLAN)可編程適配器進行 配置和監控，從而實現對各個設備參數的單獨設置和現場優化。
配置靈活
SSI 絕對值參數設置
1 ... 131,072 范圍內的任何脈沖數
2 ... 12,000 rpm 范圍內的任何超速值
與您的應用快速集成
憑借緊湊型可編程適配器，可以通過 PC 機、平板電腦或智能手機很直觀地進行配置 —— 即使編碼器已經安裝 完畢。監測功能可清晰、直觀地顯示當前的編碼器信號(例 如在調試期間)。參數下載非常方便，使文檔管理更加簡單。 采用密碼驗證，防止任何意外修改。
輕松監測當前信號
不影響編碼器與控制器之間的通訊
單圈和多圈位置
轉速
溫度
HMG10 / PMG10 系列重載編碼器具有極高的能 力儲備，可提高設備利用率，減少系統維護 工作量。
兩端式軸承
能量自給式重載多圈計數器 MicroGen
高性能輸出驅動器
超堅固型高精度磁式單圈感應技術
堅固的外殼設計
出色的防腐蝕保護v
The intelligent HeavyDuty encoders
HMG10P / PMG10P.
The intelligent encoders deliver position and signal information for Speed control in harsh environments. What’s new: configuration and monitoring by wireless LAN programming adapter which allows customized settings and on-site optimization of device parameters.
Flexible configuration
SSI configuration of absolute value
Any pulse number within 1 ... 131 072 increments
Any switching speed within 2 ... 12 000 rpm
Quick integration in your application
The compact programming adapter allows intuitive Encoder configuration by PC, tablet or smartphone - even if the encoder is already installed.
The monitoring functionality visualizes the current encoder signals, for example during commissioning. Convenient Parameter download simplifies documentation effort. Password authentication prevents any unintended modification.
Convenient monitoring of current signals
Non-interfering to encoder-controller communication
Singleturn and multiturn position
Speed
Temperature
HeavyDuty encoders of the HMG10 / PMG10 series offer maximum performance reserves, higher availability and less system maintenance.
Bearings at both shaft ends
Energy harvesting, HeavyDuty multiturn counter MicroGen
High-performance output drivers
Ultra-robust, precise magnetic singleturn sensing
Robust housing design
Outstanding corrosion protection
BAUMER編碼器其他常用型號：
BAUMER HMG10P-THL.FGUG.30000.G
BAUMER HMG10P-BHL.6FP0.36005.A
BAUMER HMG10P-THL.FGUG.30000.G1
BAUMER Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAUMER編碼器HMG10P-THL.FGUG.30000.G的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BAUMER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
BAUMER編碼器HMG10P系列HMG10P-THL.FGUG.30000.G技術參數
