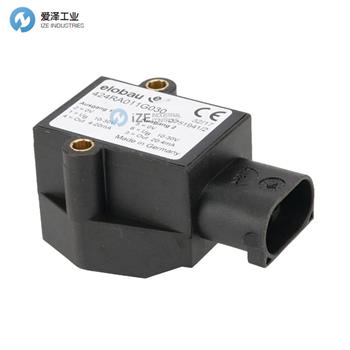

ELOBAU角度傳感器424RA111G030產品介紹
Notice | 424R = Basic number angle sensor |
Connection | A = AMP connector, Micro Quadlock 114-18063-21, coding A |
Stock | 1 = ball bearing |
Output signal 1 | 1 = 4?20 mA |
Output signal 2 | 1 = 4?20 mA |
Output signal | G = Counter-rotating |
Angle measuring range | 030 = 30° |
ELOBAU角度傳感器424R系列介紹
角度傳感器424R具有冗余設計，因此適用于安全關鍵的測量任務。該傳感器測量的角度范圍在30°到120°之間。角度傳感器424R基于非接觸式霍爾測量原理，具有極高的可靠性并確保長使用壽命。此傳感器可用于伸縮臂的角度測量、伸縮裝卸機和升降平臺等許多其他具有挑戰性的非公路應用。
產品評價：
由于采用霍爾原理的非接觸式測量，具有長使用壽命和極高的可靠性。
擁有IP67防護等級，適用于惡劣的環境條件。
耐高溫，工作溫度范圍從 -40°C 到 +85°C。
分辨率為0.1°。
提供電流或電壓輸出信號。
具備冗余輸出信號。
可配備AMP插頭（Micro Quadlock系統）或Deutsch插頭DT04-6P。
Angle sensor 424R has a redundant design and, as a result, is suitable for safety-critical measurement tasks. The sensor measures angles are between 30° and 120°. Angle sensor 424R is based on the contactless Hall measurement principle, which is extremely reliable and ensures a long service life. The sensor can be used for angle determination in telescopic arms of telescopic handlers and lifting platforms as well as for many other challenging off-highway applications.
Rate this product
Long lifetime and extremely reliable from contactless measurement with Hall principle
P67 protection class for harsh environmental conditions
High temperature resistance from -40 °C to +85 °C
Resolution 0.1°
Current or voltage output signal available
Redundant output signal
Available with AMP plug (Micro Quadlock System) or Deutsch plug DT04-6P
ELOBAU角度傳感器其他常用型號：
ELOBAU 424RA111G030
ELOBAU 424R A077P120B
ELOBAU 424R A011P120B
ELOBAU 424R A011G030
ELOBAU 424R A077P120
ELOBAU 424R D166G120B
ELOBAU 424R A166P050
ELOBAU 424R D111G120
ELOBAU 424R D177G050B
ELOBAU 424R D111P120B
