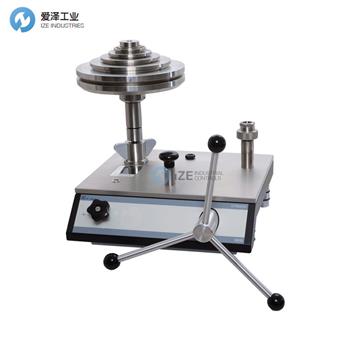

DH-BUDENBERG靜重測試儀CPB5800產品介紹
描述
經過驗證的一級標準
砝碼壓力計是市場上最精確的儀器，用于校準電子或機械壓力測量儀器。壓力的直接測量 (p = F/A) 以及高質量材料的使用，使其具有非常小的測量不確定度，并具備出色的長期穩定性。因此，多年來，它一直被用于工業、國家機構和研究實驗室的工廠和校準實驗室。
獨立操作
由于其集成的壓力生成和純機械測量原理，CPB5800 型砝碼壓力計非常適合用于現場的維護和服務。
基本原理
壓力定義為力與面積的商。因此，CPB5800 型砝碼壓力計的核心部件是一個非常精確制造的活塞-氣缸系統，通過加載質量來生成各個測試點。
質量負載與目標壓力成正比，這通過理想的分級質量實現。標準上，這些質量是根據標準重力 (9.80665 m/s2) 制造的，不過它們可以根據特定地點進行調整并根據 UKAS 認證進行校準。
應用
用于液壓范圍內最高達 1,400 bar [20,000 lb/in2] 的壓力標定的一級標準
工廠和校準實驗室的參考儀器，用于壓力測量儀器的測試、調整和校準
完整、獨立的系統，也適合現場使用
特殊特點
總測量不確定度可達讀數的 0.006%
極具靈活性，提供廣泛的單一和雙量程活塞-氣缸系統
雙量程活塞-氣缸系統，可完全自動化改變量程
工廠校準包括追溯到國家標準的能力，UKAS 校準為可選項
通過專利的 ConTect 快速釋放系統快速安全地更換活塞-氣缸系統，作為可選項
Description
Proven primary standard
Dead weight testers are the most accurate instruments available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high-quality materials enable a very small measurement uncertainty, in conjunction with an excellent long-term stability. It has therefore been used for years in factory and calibration laboratories in industry, national institutes and research laboratories.
Stand-alone operation
Due to its integrated pressure generation and the pure mechanical measuring principle, the model CPB5800 dead weight tester is ideal for on-site use for maintenance and service.
Basic principle
Pressure is defined as the quotient of force and area. The core component of the model CPB5800 dead weight tester is therefore a very precisely-manufactured piston-cylinder system, which is loaded with masses in order to generate the individual test points.
The mass load is proportional to the target pressure and this is achieved through optimally graduated masses. As standard, these masses are manufactured to the standard gravity (9.80665 m/s2), though they can be adjusted to a specific location and calibrated according to UKAS accreditation.
Applications
Primary standard for calibrating the pressure scale in a hydraulic range up to 1,400 bar [20,000 lb/in2]
Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments
Complete, stand-alone system, also suitable for on-site use
Special Features
Total measurement uncertainty to 0.006 % of reading
Extremely flexible instrument with a wide range of single and dual-range piston-cylinder systems
Dual-range piston-cylinder systems with fully automated changing between ranges
Factory calibration includes traceability to national standards, as standard, with UKAS calibration possible as an option
Fast and safe replacement of the piston-cylinder system via patented ConTect quick-release system as an option
