PCB傳感器683A001000規格描述
PERFORMANCE | |
Sensor Input Type(s) | Loop-powered |
Input Signal | 4 to 20 mA |
Channels | 1 |
Accuracy | ±0.05 % FS |
Output Signal | 4 to 20 mA |
Relay Type (Alert) | 5A Form A 230 VAC/30 VDC |
Relay Type (Alarm) | 5A Form A 230 VAC/30 VDC |
Delay | 0 to 9999 sec |
ENVIRONMENTAL | |
Temperature Coefficient of Sensitivity | 56 ppm/°F |
Warm Up | <2 minutes |
Temperature Range (Operating) | 32 to 140 °F |
Temperature Range (Storage) | -4 to 158 °F |
Humidity Range (Non-Condensing) | <95 % |
ELECTRICAL | |
Power Required (Auto Sensing) | 85-265 VAC/95-370 VDC |
Current Consumption (Typical) | 2.5 W |
Current Consumption (Max) | 3.5 W |
Excitation Voltage (±1 VDC) | 24 VDC |
PHYSICAL | |
Size - Depth | 4.61 in |
Size - Width | 3.45 in |
Size - Height | 1.61 in |
Housing Material | Polycarbonate |
Weight | 8.5 oz |
Din Rail Mount | 1/8 in |
Electrical Connector | Removable Screw Terminals |
BEZEL | 3.78 x 1.89 in |
Depth Behind BEZEL | 4.61 in |
Depth Behind BEZEL (Rt. Angle Conn.) | 5.08 in |
Depth Behind BEZEL (Straight Conn.) | 5.40 in |
Accessories | None |
PCB傳感器683A001000產品介紹
帶4-20 mA輸入、85-265 Vac/95-370 Vdc電源、兩個繼電器輸出、可選4-20 mA輸出、3 Hz-10 kHz頻率響應的指示器/控制器
用于4-20 mA回路供電傳感器、85-265 Vac/95-370 Vdc供電、雙繼電器、4-20 mA再傳輸?shù)腎CP指示器/控制器?？删幊绦园ū壤蜃?、偏移、小數點位置、設定點調整、具有重置的峰谷視圖、LED亮度、繼電器接通或斷開的時間延遲、高或低設定點繼電器動作、繼電器滯后。
輸入信號：4至20 mA（4至20 mA）
所需電源：85-265 VAC/95-370 VDC
輸出信號：4至20 mA（4至20 mA）
Indicator/controller with 4-20 mA input, 85-265 VAC/95-370 VDC power supply, two relay outputs, optional 4-20mA output, 3 Hz-10 kHz frequency response
ICP Indicator/ Controller for 4-20 mA loop-powered Sensor, 85- 265 VAC/ 95- 370 VDC powered, dual relays, 4-20 mA re-transmit. Programmability includes scale factor, offset, decimal point location, set point adjustment, peak and valley view with reset, LED brightness, time delay on relay make or break, HI or LOW set point relay action, relay hysterisis.
Input Signal: 4 to 20 mA (4 to 20 mA)
Power Required: 85-265 VAC/95-370 VDC
Output Signal: 4 to 20 mA (4 to 20 mA)

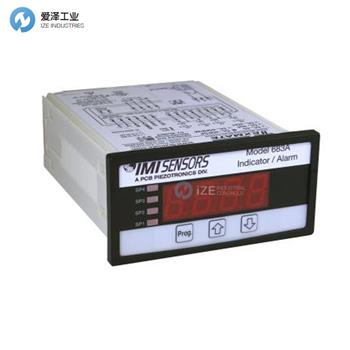

PCB傳感器683A001000
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件PCB傳感器部分型號：
PCB傳感器683A000000
PCB傳感器683A001000
PCB傳感器683A100000
PCB傳感器683A101000
PCB Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PCB傳感器683系列 683A001000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PCB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
PCB傳感器683系列683A001000 產品參數
