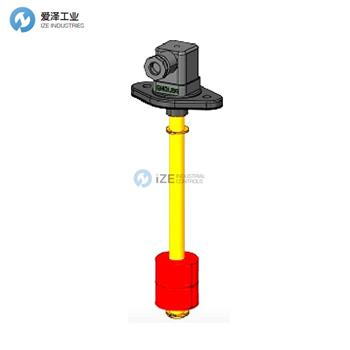

ENGLER浮球開關SSM.1.B5.550.5.S1產品參數
Specification | |
Connection | terminal connection 1,5mm2 in the housing cable entry at the housing M16x1,5 housing material alu, colour grey via housing floor - see drilling pattern |
Mounting | via housing floor - see drilling pattern |
Seal | material NBR |
Tube | ?12mm, material brass |
Float | S1: material PP ?35x40mm |
Switching points | reed contacts, max. 3 x n.o. contact/n.c. contact or changeover contact additional reed contacts available on request |
Switching voltage, current, output | 230 VAC, 1A, 60VA |
Pressure | max. 1 bar |
Operating temperature | -20°C to 80°C in medium, -20°C to 70°C above mounting |
Protection rating | IP 65 |
ENGLER浮球開關SSM系列產品介紹
黃銅浮球開關
Engler 液位開關幾乎適用于所有類型的流體
用于記錄工廠工程、機械工程、液壓動力單元、壓縮機、冷卻系統、發電廠和其他電力系統中的液位
黃銅滑動管
多種型號和設計可供選擇
提供定制解決方案，涵蓋連接、安裝、材質、功能等……
最多 4 個開關點，可選常閉觸點、常開觸點或轉換觸點
可根據要求提供溫度開關或溫度傳感器
Float Switch brass
Application of Engler level switches in almost all kind of fluids
Recording of filling levels in plant engineering, mechanical engineering, hydraulic power packs, compressors, cooling systems, power plants and other power Systems
Sliding tube in brass
Very large choice of models and designs
Customized solutions regarding connection, mounting, material, function…..
Up to 4 switching points as N.C. contact, N.O. contact or changeover contact
Temperature switch or temperature sensor available on request
ENGLER浮球開關SSM系列其他常見型號：
ENGLER SSM.1.B5.550.5.S1
ENGLER SSM.2.A1.B1.50.500.1.S1
ENGLER SSM.2.A2.B2.50.500.1.S1
ENGLER SSM.2.A3.B3.50.500.1.S1
ENGLER SSM.2.C1.C2.50.500.1.S1
ENGLER SSM.2.C2.C3.50.500.1.S1
ENGLER SSM.2.B1.C1.50.500.1.S1
