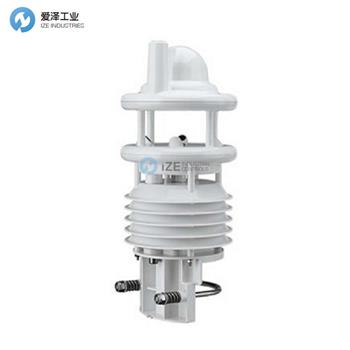

LUFFT氣象傳感器WS700-UMB系列技術參數
General | |
Dimensions | ? approx. 150 mm, height approx. 317 mm |
Weight | Approx. 1.5 kg |
Interface | RS485, 2 - wire, half - duplex |
Power supply | 11 …. 32 VDC |
Power supply | 5 … 11 VDC (electronics with limited precision of measurements) |
Power supply | 24 VDC +/- 10% (heater) |
Power consumption | 40 VA (heater) |
Frequency range | 24.150 GHz – 24.250 GHz (Europe; (Article no. 8380.2) |
Operating temperature | -50...60°C (with heater) |
Operating rel. humidity | 0...100% RH |
Cable length | 10 m |
Protection level housing | IP66 |
Standards/Regulations | Compliant to IEC 61724-1:2017 Class C |
Mast mounting suitable for | Mast diameter 60 - 76 mm |
Temperature | |
Principle | NTC |
Measuring range | -50...60 °C |
Unit | °C |
Accuracy | ±0.2°C (-20...50 °C), otherwise ±0.5 °C (> -30 °C) |
Relative humidity | |
Principle | Capacitive |
Measuring range | 0 ... 100 % RH |
Unit | % RH |
Accuracy | ±2 % RH |
Air pressure | |
Principle | MEMS capacitive |
Measuring range | 300 ... 1200 hPa |
Unit | hPa |
Accuracy | ±0.5 hPa (0...40 °C) |
Wind direction | |
Principle | Ultrasonic |
Measuring range | 0 ... 359.9 ° |
Unit | ° |
Accuracy | < 3° RMSE > 1.0 m/s |
Resolution | 0.1 |
Wind speed | |
Principle | Ultrasonic |
Measuring range | 0 ... 75 m/s |
Unit | m/s |
Accuracy | ±0.3 m/s or ±3 % (0...35 m/s) ±5 % (>35 m/s) RMS |
Resolution | 0.1 |
Precipitation (liquid) | |
Droplet size | 0,3 … 5 mm |
Detection sensitivity | 0,01 mm/h |
Particle velocity | 0.9 ... 15.5 m/s |
Precipitation types | rain/ snow |
Solid precipitation | 5.1 ... ~30 mm |
Intensity range | 0…200mm/h |
Intensity resolution | 0.01 mm/h |
Amount resolution | 0.1 mm |
Accuracy: | 20 % under laborary conditions |
Reproducibility | Typical >90 % under laborary conditions |
Radiation | |
Unit | W/m2 |
Accuracy | 0.05 |
Response time (95%) | < 1 s |
Spectral range | 300 to 1100 nm |
Measuring range | 1400 W/m2 |
LUFFT氣象傳感器WS700-UMB系列介紹
來自 WS 產品系列，該系列產品是專業智能測量傳感器，帶有數字接口，適用于環境應用。集成設計，通風防輻射，用于測量：空氣溫度、相對濕度、降水強度、降水類型、降水量、氣壓、風向、風速和輻射。可連接一個外部溫度傳感器。
? 由于采用帶頂結構，測量風向和風速時不受鳥巢的影響
? 緊湊型氣象傳感器的一體式外殼概念，在一個外殼中結合了 7 個測量參數，僅需一根電纜連接
? 內置數據預處理、通用接口和可選輸出協議
? 由于采用開放式通信協議，可與許多市售的 Met/HydroMet 數據記錄器和 PLS 系統兼容
? 免維護操作 - 沒有會磨損的活動部件
? 適用于所有氣候區；也適用于太陽能自動氣象站
? 通風溫度和濕度檢測
? 集成加熱器，如有霜凍危險，可開啟
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed and radiation. One external temperature sensor is connectable.
? Measuring wind direction and speed insusceptibly to bird nesting thanks to roofed construction
? All-in-one housing concept of a compact weather sensor combining 7 measurement parameters in one housing with only one cable connection
? Built-in data pre-processing, universal interfaces and selectable output protocols
? Compatible with many commercially available Met/HydroMet dataloggers and PLS systems thanks to an open communication protocol
? Maintenance-free operation – no moving parts that can wear out
? Suitable for all climate zones; also for solar-powered automatic meteorological stations
? Ventilated temperature and humidity detection
? Integrated heater that can be switched on if there is danger of frost
LUFFT氣象傳感器WS系列其他常用型號：
LUFFT WS700-UMB 8380.2
LUFFT WS800-UMB 8381.1
LUFFT WS700-UMB 8380.1
LUFFT WS601-UMB 8376.1
LUFFT WS600-UMB 8370.1
LUFFT WS510-UMB 8375.5
LUFFT WS502-UMB 8375.2
LUFFT WS501-UMB 8375.1
LUFFT WS500-UMB 8373.1
LUFFT WS401-UMB 8377.1
LUFFT WS400-UMB 8369.1
LUFFT WS310-UMB 8374.5
LUFFT WS302-UMB 8374.2
