ARTECH稱重傳感器80210-125K介紹
SPECIFICATIONS: | |
Standard Capacities (lbs.) | 20K, 30K, 40K, 50K, 60K, 65K, 75K, 100K, 150K, 200K |
Excitation Voltage | 10VDC - Maximum 15VDC |
Rated Output | 3.0 mv/v ± 0.10% |
Non-Linearity | < 0.03% FSO (Full Scale Output) |
Hysteresis | < 0.02% FSO |
Non-Repeatability | < 0.01% FSO |
Zero Balance | ± 1.0% FSO |
Bridge Resistance | 700 ohms ±7.0 ohms |
Safe Overload | 150% of Rated Capacity |
Temperature - Compensated Range | 0 - 150 deg. F |
Temperature - Effect of Output | < 0.0008% FSO/deg. F |
Temperature - Effect on Zero | < 0.0011% FSO/deg. F |
Material/Finish | Nickel/Chrome Plated |
ARTECH稱重傳感器80210系列介紹
描述：
80210 型雙端剪切梁稱重傳感器非常適合與卡車秤相關的惡劣環境。其高合金工具鋼結構可在沖擊載荷和不利條件下提供最佳保護。該傳感器采用兩個防水密封和鍍鎳/鍍鉻，可確保耐腐蝕，從而保護環境
20K 至 200K 磅容量
低調設計
鍍鎳/鍍鉻，高合金工具鋼
完全環保/ IP67
NTEP 認證版本可用于 III 級 L 10,000 部門
工廠互助 (F.M.) 批準
提供安裝硬件
DESCRIPTION:

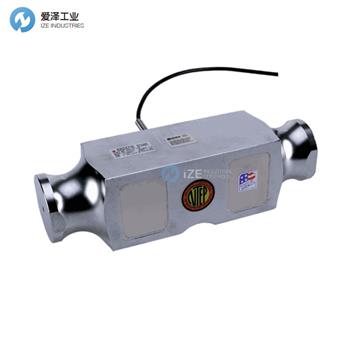

The Model 80210, a double ended shear beam load cell, is ideally suited for tough environments associated with truck scales. Its construction of high alloy tool steel provides optimum protection under impact loading and adverse conditions. The cell is environmentally protected with two water resistant seals and nickel/chrome plating to assure resistance against corrosion
20K to 200K pounds capacities
Low profile design
Nickel/Chrome plated, high alloy tool steel
Complete environmental protection / IP67
NTEP Certified versions available for Class III L 10,000 division
Factory Mutual (F.M.) Approved
Mounting Hardware available
ARTECH稱重傳感器其他常見型號：
ARTECH 80210-125K
ARTECH 80210-20K
ARTECH 80210-30K
ARTECH 80210-40K
ARTECH 80210-50K
ARTECH 80210-60K
ARTECH 80210-65K
ARTECH 80210-75K
ARTECH 80210-100K
ARTECH 80210-150K
ARTECH 80210-200K
ARTECH Load Cells NEW + ORIGINAL+ ONE YEAR WARRANTY
