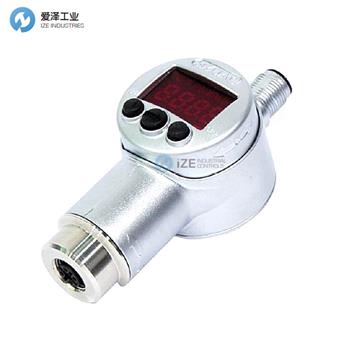

HYDAC溫度傳感器ETS3866-F31-000-000規格描述
Technical data | |
Temperature probe length | 0 |
Approvals and certificates | No |
Additional interface | 4 to 20mA (2 conductors), 0 to 10V, IO-Link |
Switching outputs | 2 |
Temperature range max value | 150 |
Temperature range min value | -30 |
Temperature probe | discontinued |
Display | Yes |
Electrical connection | M12x1 / 4p |
Mechanical connection | None |
HYDAC溫度傳感器ETS3800系列介紹
ETS 3800 是一款緊湊型電子溫度開關，配有 4 位數字顯示屏。獨立溫度探頭的測量范圍為 -30 ... +150°C，主要與專為油箱安裝開發的 TFP 100 溫度探頭配合使用。但是，也可以使用市售的 PT 100 溫度探頭。各種輸出變體具有一個或兩個開關輸出，可選地具有額外的模擬輸出信號，開辟了多種應用可能性。可以使用鍵盤非?？焖佥p松地調整開關點和相關的滯后。為了適應相應的應用，該設備提供了許多額外的設置參數（例如開關延遲時間、N/O（常開）功能等）。
2 個開關輸出，每個輸出可承受高達 1.2 A 的負載
可選模擬輸出（4 .. 20 mA / 0 ... 10 V）
4 位數字顯示
可通過 2 個平面的旋轉功能選擇顯示對齊方式
可使用鍵盤設置開關/復位點和許多有用的附加功能
以 °C 或 °F 顯示測量值和單位
The ETS 3800 is a compact electronic temperature switch with a 4-digit display. The version for a separate temperature probe has a measuring range of -30 ... +150°C and is used primarily with the TFP 100 temperature probe which was specially developed for tank installation. It is also possible, however, to use commercially available PT 100 temperature probes. Various output variants with one or two switching outputs, optionally with additional analogue output signal, open up a multitude of application possibilities. The switch points and the associated hystereses can be adjusted very quickly and easily using the key pad. For adjustment to the respective application, the device offers many additional setting parameters (e.g. switching delay times, N/O (normally open) function, etc).
2 switching outputs, capable of bearing loads of up to 1.2 A per output
Optional analogue output (4 .. 20 mA / 0 ... 10 V)
4-digit digital display
Optional alignment of the display by means of rotational capability in 2 planes
Switching / reset points and many helpful additional functions can be set using the key pad
Display of measured value and units in °C or °F
HYDAC溫度傳感器ETS3800系列其他常用型號：
HYDAC ETS3866-F31-000-000
HYDAC ETS3868-5-000-000
HYDAC ETS3866-2-000-000
HYDAC ETS3866-3-000-000
HYDAC ETS3866-F31-000-000
HYDAC ETS3868-5-000-400
HYDAC ETS3866-3-000-V00
HYDAC ETS3866-3-000-000 + PP
HYDAC Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC溫度傳感器ETS3866-F31-000-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
