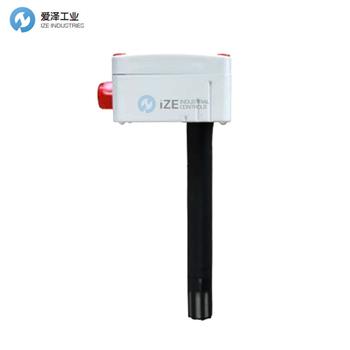

THERMOKON溫濕度傳感器CDI4.BE技術參數
Sensor Specification | |
Measured | Temperature & Humidity |
Sensor Characteristics | Active |
Outputs | 0...10V; 0...10V or 4...20mA; 4...20mA |
Output Load | |
0...10V | Min. load 10kΩ @ AC/DC 24V |
4...20mA | Max. load 5000 @ DC 24V |
Measuring Current | <1mA |
Accuracy | |
relative humidity | ± 2% within 0...100% r.h. |
absolute humidity | ± 2% within 0...100% r.h. |
enthalpy | ± 2% within 0...100% r.h. |
dew point | ± 2% within 0...100% r.h. |
Temperature PT100/1000 | ± 0.3K @ 0°C DIN EN 60751, class B |
Temperature NTC10k/10k Pre / 20k | ±0.3K @ 25°C |
Temperature NI1000 | ± 0.4K @ 0°C DIN EN 43760, class B |
IP- Rating sensor element | IP67 to IEC60529 |
Repeatability (H) | ±0.1℃; ±0.1% r.h. |
Long Term Drift (H) | < 0.04C/ year; <0.5% r.h. / year |
Measuring Range (H) | 0...100% |
Measuring Range (T) (default) | -20°C...80°C |
Measuring Ranges (T) (optional, on board) | 0°C...50°C; -50°C...+50°C; 0°C...+100°C |
THERMOKON溫濕度傳感器CDI4系列介紹
CDI4 系列 (H&T) 專為測量空氣管道中的溫度、相對濕度、絕對濕度、焓或露點而設計。
傳感器采用低電源供電。由于傳感器元件受到高度保護，因此傳感器可承受惡劣的環境條件。
提供無源傳感器。濕度和溫度傳感器輸出為有源，無源溫度傳感器可選。
The CDI4- Series (H&T) is designed to measure temperature, relative humidity, absolute humidity, enthalpy or dew point in air ducts.
The sensor operates with low power supply. The sensor withstands harsh environmental conditions due to high protected sensor element.
Available with passive sensors. Humidity and Temperature sensor outputs are active, passive Temperatures sensor optional.
THERMOKON溫濕度傳感器CDI4系列其他常用型號：
THERMOKON CD14.AE
THERMOKON CDI4.AJa
THERMOKON CDI4.AKa
THERMOKON CDI4.AMa
THERMOKON CD14.AOa
THERMOKON CDI4.ANa
THERMOKON CDI4.ALa
THERMOKON CDI4.BE
THERMOKON CDI4.BJa
THERMOKON CDI4.BKa
THERMOKON CD14.BMa
THERMOKON CDI4.BOa
THERMOKON CDI4.BNa
THERMOKON CDI4.BLa
THERMOKON SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMOKON溫濕度傳感器CDI4.BE的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMOKON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
