DECKMA油水監測器OMD-2005技術參數
SPECIFICATION OMD-2005 | |
Range: | 0 – 30 ppm |
Accuracy | According IMO MEPC. 107(49) |
Linearity | Up to 30 ppm better than ± 2 % |
Display | Green Graphic Display |
Power Supply: | 24 V – 240 V AC or DC Automatic Voltage Selection |
Consumption: | < 15 VA |
Alarm Points 1 + 2: | Adjustable between 1 - 15 ppm (Works adjustment 15 ppm) |
Alarm 1 Operating Delay:(for annunciation purpose) | Adjustable between 1 – 540 sec. (Works adjustment 2 sec.) |
Alarm 2 Operating Delay:(for control purposes) | Adjustable between 1 – 10 sec. (Works adjustment 10 sec.) |
System Fault Alam: | Red LED |
Alarm Contact Rating: | Potential free 1-pole change over contacts, 3 A / 240 V |
Alarm Indication: | Red LED's |
Output Signal: | 0 – 20 mA or 4 – 20 mA, reversible ext. Load < 150 ? |
Sample Water Pressure: | 0,1 – 10 bar |
Sample Flow: | Approx. 0,1 - 4 l/min. depend. to pressure |
Ambient Temperature: | + 1 to + 55° C |
Sample Water Temperature: | + 1 to + 65° C |
Roll: | Up to 45° C |
Size (over all): | 360 mm W x 240 mm H x 100 mm D |
Degree of Protection: | IP 65 |
Weight: | 7,3 kgs |
Pipe Connections: | R ?" Female |
DECKMA油水監測器OMD-2005介紹
Deckma OMD-2005 艙底報警監控器由 Deckma Hamburg GmbH 設計，用于與 15 ppm 油水分離系統配合使用。OMD-2005 的性能和規格符合國際海事組織 (IMO) 的 MEPC.107 (49) 決議。
OMD-2005 由三個主要組件組成：計算機單元、測量單元和閥門組件。計算機單元包括一個記憶卡（數據記錄器），可以記錄和存儲長達 18 個月的數據。測量單元容納光學電子器件，并通過通信電纜與計算機單元連接。閥門組件直接連接到測量單元和計算機單元，配有一個特殊的手柄用來感知閥門的位置。

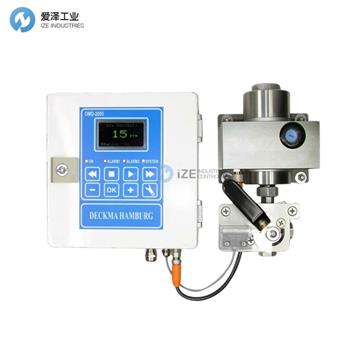

The Deckma OMD-2005 Bilge Alarm Monitor was designed by Deckma Hamburg GmbH for use in conjunction with 15 ppm Oily Water Separator Systems. The performance and specifications of the OMD-2005 comply with IMO Resolution MEPC.107 (49).
The OMD-2005 is made up of 3 main components: the Computer Unit, Measuring Cell & Valve Assembly. The Computer Unit includes a memory card (data logger) that records and stores up to 18 month of data. The Measuring Cell houses the optical electronics and corresponds with the computer unit via the communication cable. The Valve Assembly is connected directly to the Measuring Cell and Computer unit and contains a special handle to sense the position of the valve.
DECKMA油水監測器OMD系列其他常用型號：
DECKMA OMD-32 10900
DECKMA OMD-32A
DECKMA OMD-21
DECKMA OMD-24
DECKMA OMD-2005
DECKMA OMD-2008
DECKMA OIL-IN-WATER MONITOR NEW + ORIGINAL+ ONE YEAR WARRANTY
