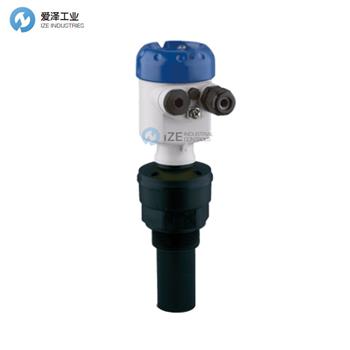

KROHNE液位變送器OPTISOUND3010C技術參數
General information | |
Product type | Level transmitter |
Product family name | OPTISOUND |
Product positioning | For basic applications up to 5 m / 16.4 ft |
Product variants | OPTISOUND 3010 C: Compact housing |
Measurement variables | Level |
Measurement principle | Ultrasonic |
Level measurement type | Continuous measurement |
Contact to measured medium | No |
Interface measurement | No |
Redundancy | No |
Measured media | Liquids, Slurries, Pastes, Solids, Bulk solids, Granulates, Powders |
Measuring range (liquids) | 0.25…5 m/ |
Measuring range (solids) | 0.25…2 m/ |
Measuring point | Open tank, Open basin, Open channel, Stockpile, Conveyor belt |
Operating conditions | |
Process pressure | -0.2…2 barg/ |
Process temperature | -40…+80°C/ |
Materials | |
Gaskets | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez? 6375, PFA |
Wetted parts | Polyvinylidene fluoride (PVDF) |
Process connections | |
Thread connections | Male: |
Approvals/Standards | |
Ingress protection | IP66/67, NEMA4/4X/6 |
Certificates/Approvals Ex | ATEX |
Certificates/Approvals Others | EAC |
Certificates/Approvals Safety | SIL 2 |
Communication | |
Analogue outputs | 4…20 mA |
Digital outputs | HART? |
Accuracy | |
Accuracy (liquids) | ±4 mm/ |
Accuracy (solids) | ±4 mm/ |
KROHNE液位變送器其他常用型號：
KROHNE OPTISOUND3010C
KROHNE OPTISOUND3020C
KROHNE Liquid level transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROHNE液位變送器OPTISOUND3010C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROHNE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
KROHNE液位變送器OPTISOUND3010C介紹及參數
