NEXON壓力變送器PA1000系列技術參數
Powered by | |
Current output type | 10…30Vdc |
Current consumption | |
2line | Same as the output signal current(4…20mA) |
Current mode analog output | |
Output type | 2Wire4…20mA |
LoadRA(Ω) | RA (Us-10)V/0.02A |
Linearity | ≤±0.5%Range |
Response time | ≤1ms |
Repeatability/hysteresis | ≤±0.1%Range |
Accuracy | ≤±0.5%fs |
Stability (annual drift) | ≤±0.3%Range |
Temperature | |
Medium temperature | -20…+85℃ |
Ambient temperature | -20…+85℃ |
Material | |
Case | 304Stainless steel |
Media contact part | 304Stainless steel |
Degree of protection | IP67 (M12×1Connector) |
Outgoing way | M12×1Connector |
Process connection | G1/4external threadEDseal |

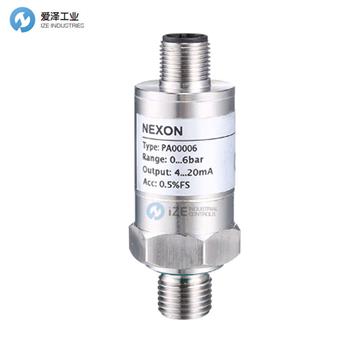

NEXON壓力變送器PA1000系列介紹
PA1000 配備陶瓷厚膜傳感元件，將測量的壓力轉換為 4...20mA 作為輸出。全金屬外殼適合各種工況，多種過程連接使安裝更方便。
? 緊湊的設計
? 外殼直徑Φ22
? 測量范圍從0...4barG 到0...400barG
? 高抗震性
? 2 線 4...20mA 輸出
? 陶瓷厚膜傳感元件
Equipped with a ceramic thick film sensing element, PA1000 converts the measured pressure to 4...20mA as output. All-metal housing makes it suitable for various working conditions while multiple process connections makes installation easier.
? Compact design
? Housing diameter Φ22
? Measuring range from 0...4barG to 0...400barG
? High shock reslstance
? 2-wire 4...20mA output
? Ceramic thick film sensing element
NEXON壓力變送器PA1000系列其他常用型號：
NEXON PA1000/B001P0242G14MS
NEXON PA1000/B004P0242G14MS
NEXON PA1000/B006P0242G14MS
NEXON PA1000/B010P0242G14MS
NEXON PA1000/B016P0242G14MS
NEXON PA1000/B025P0242G14MS
NEXON PA1000/B040P0242G14MS
NEXON PA1000/B060P0242G14MS
NEXON PA1000/B100P0242G14MS
NEXON PA1000/B160P0242G14MS
NEXON PA1000/B250P0242G14MS
NEXON PA1000/B400P0242G14MS
NEXON PA1000/B400P0242G14MM
NEXON PRESSURE TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON壓力變送器PA1000/B400P0242G14MM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
NEXON壓力變送器PA1000系列PA1000/B400P0242G14MM技術參數介紹
