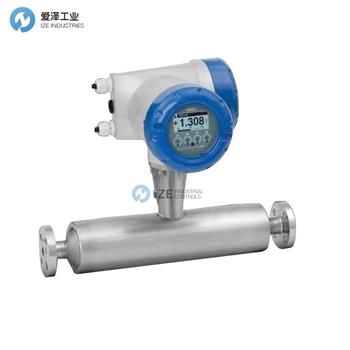

KROHNE流量計OPTIMASS 7400系列技術參數
Specifications | |
Depending on selected device configuration | |
General information | |
Product type | Flowmeter |
Product family name | OPTIMASS |
Product positioning | For advanced process and custody transfer (CT) applications |
Measurement principle | Coriolis |
Measured media | Liquids, Gases |
Operating conditions | |
Process pressure | max. 100 barg/ |
Process temperature | -40…+150°C/ |
Materials | |
Measuring tube | Austenitic alloy (2.4602/Alloy 22), Duplex stainless steel (1.4462/318), Titanium alloy (3.7195/Ti-Grade 9), Tantalum (UNS RO5255 / RO5200) |
Process connections | |
Flange connections | EN (1092-1): DN10…100 |
Hygienic connections | Clamp (DIN 32676): DN10, DN15, DN25, DN40, DN50, DN80 |
Approvals/Standards | |
Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004, ASME BPE |
Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication | |
Analogue outputs | 4…20 mA |
Discrete outputs | Limit switches, Pulse, Frequency, Status |
Digital outputs | FOUNDATION? fieldbus, HART?, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP?, PROFINET, Bluetooth |
KROHNE流量計OPTIMASS 7400系列其他常用型號：
KROHNE OPTIMASS 7400C
KROHNE OPTIMASS 7400C S25
KROHNE OPTIMASS 6400
KROHNE OPTIMASS 2400
KROHNE OPTIMASS 7400
KROHNE OPTIMASS 3400
KROHNE OPTIMASS 7010
KROHNE OPTIMASS 3010
KROHNE OPTIMASS 1010
KROHNE OPTIMASS 4011
KROHNE OPTIMASS 4010
KROHNE Flowmeters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROHNE流量計OPTIMASS 7400C S25的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROHNE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
KROHNE流量計OPTIMASS 7400系列OPTIMASS 7400C S25介紹及參數
