PRUFTECHNIK振動變送器5.736技術參數
Technical Data | |
Measurement | |
Output signal | Current intensity level (4-20 mA) |
Measurement range (RMS) | <20 mm/s |
Accuracy | ±0.2 mm/s plus ±2%?of measured value (Reference: 159 Hz) |
Frequency range, ±10% | 2 Hz to 1?kHz |
Temperature range, TA | -40 °C to 80 °C (-40 °F to 176 °F) |
Temperature offsetdrift (@ 4mA) | -0.015%/K |
Temperature sensitivity | -0.08%/K |
Electrical | |
Power supply | 24 V DC (±5%), über Stromschleife |
Loop resistance | 90 to 360 Ohm |
Insulation | complete |
Mechanical | |
Case material | Stainless steel VA 1.4305 |
Environmental protection | IP 67; IP 68 with pre-assembled cable VIB 3.570-L; Immersion depth: 10 m (33 ft) |
Mounting | M8 hexagon socket set screw or mounting adapter |
Connection | 2-pin cable connector (Cannon, MIL-C5015) |
Shock limit | <50 kms-2 |
Weight | 80 g |

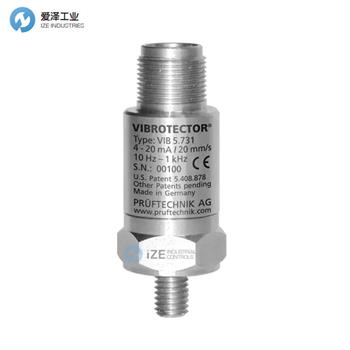

PRUFTECHNIK振動變送器5.736產品介紹
該傳感器用于監測工業機械的振動。
振動信號以電流水平 (4-20 mA) 的形式傳送到機器控制器進行分析。
? 根據 ISO 10816-3 和 7 進行持續振動監測
? 無需額外硬件
? 安裝成本低
? 輕松集成到您的控制系統中
? 堅固緊湊的設計
? 4-20mA 輸出
? 也可用于 ATEX / IECEx 1/21 區
This sensor is employed to monitor vibration in industrial machinery.
The vibration signal is relayed as a current level (4-20 mA) to the machine controls for analysis.
? Continuous vibration monitoring according to ISO 10816-3 and 7
? No additional hardware required
? Low installation costs
? Easy integration into your control system
? Robust compact design
? 4-20mA output
? Also available for ATEX / IECEx Zone 1/21
PRUFTECHNIK振動變送器VIB系列其他常用型號：
PRUFTECHNIK VIB 5.731
PRUFTECHNIK VIB 5.736
