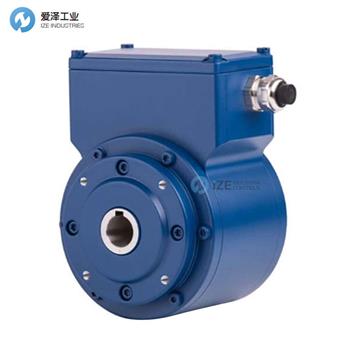

GIESSEN HUBNER編碼器FG(HJ)40系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:FGHJ40K-1024G-90G-NG/20P
G-HUBNER編碼器FGHJ40K-1024G-90G-NG/20P
預估貨期:
關  鍵  詞:G-HUBNER編碼器GIESSEN HUBNERFGHJ40K-1024G-90G-NG/20
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

G-HUBNER編碼器FG(HJ) 40系列技術參數

Technical data


Supply voltage

12-30 VDC (5 VDC optional)

Signal amplitude

HTL or TTL
Sin/Cos

Number of pulses

Standard pulse rates for HTL/TTL: 500, 600, 1000, 1024, 1200, 1300, 2000, 2048, 2400, 2500
Special pulse rates for HTL/TTL: 4000, 4096, 4800, 5000, 8192, 10000, 12000, 16000, 16384, 20000, 25000, 40000, 50000 up to 1 million
Standard pulse rates for Sin/Cos: 500, 600, 1000, 1024, 1200, 1300, 2500

Output signals

0°, 90°, N, status and inverted signals

Switching outputs

Speed

Maximum Speed / Frequency

Solid shaft: up to 6000 rpm / 200 kHz
Hollow shaft: up to 4000 rpm / 200 kHz

Electrical connection

Terminal strip in a terminal box
Fixed cable
12-pole round connector Burndy
15-pole industrial connector
FOC connector in a terminal box

Type of construction

Solid shaft (B5, B35): ? 11 mm, ? 14 mm with feather key
Through hollow shaft: ? 16 mm, ? 19 mm, ? 20 mm with keyway; ? 16 mm, ? 25 mm without keyway with clamp
Blind hollow shaft in inches: ? 3/8“, ? 1/2“, ? 5/8“, ? 3/4“, ? 7/8“, ? 1“ with clamping ring

Device temperature range

0 °C to +70 °C
-25 °C to +85 °C
-40 °C to +85 °C
-5 °C to +100 °C

Degree of protection

up to IP66 / IP67

Weight

approx. 3.5 kg

Device options / Function

Redundant incremental output
S: Electronic overspeed switch with two mutually independent, programmable switching points
LWL: Encoder signals transmitted via a fiber optic cable 50 / 125 μm or 62.5 / 125 μm
N: Mechanically fixed reference pulse (N), one square-wave pulse per revolution, with inverted signal
2F: Twice as many basic track pulses by combining the 0° and 90° tracks
B: Rapid direction of rotation sensing at each edge of 0° and 90° tracks
B2: Rapid direction of rotation sensing at each edge of 0° and 90° tracks; additional standstill detection
B3: Direction of rotation dependent output signals. This option supports counter cards with separate UP/DOWN pulse inputs. Basic track signals are issued at optional output 1 when rotation is clockwise and at optional output 2 when rotation is counterclockwise
SH: 1 Vpp signals sin, cos, reference pulse. Status as HTL signal; all signals each with respective inverted signals
ST: 1 Vpp signals sin, cos, reference pulse. Status as TTL signal; all signals each with respective inverted signals

Mechanical options

Second shaft end with B14 flange for attachments (solid shaft construction type only)
Additional foot (solid shaft construction type only)
Isolated ball bearing (hollow shaft construction type only)
MI: Saliferous environment
MS: Wet areas in rolling mills
Hollow shaft devices: Torque bracket (on request)

Certificates / Approvals

UL/CSA

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

G-HUBNER編碼器FG(HJ) 40系列介紹

增量式旋轉編碼器FG(HJ) 40設計極其堅固,  使用壽命長且可靠性高。該編碼器非常適合重工業的標準應用,并提供多種版本和附件解決方案。



堅固耐用的增量式旋轉編碼器

適用于標準、主和輔助驅動器,例如鋼鐵廠和軋機、采礦、港口和起重機

空心軸最大 ? 25 mm,實心軸最大 ? 14 mm(法蘭或底腳安裝)

高達 100 萬個脈沖 HTL/TTL,高達 2500 個正弦周期

防護等級高達 IP66 / IP67,溫度范圍為 -40 至 +100 ℃

多種設備和信號選項帶來高度靈活性



Extremely robust by design the incremental rotary encoders FG(HJ) 40 offer a long lifetime as well as high reliability. The encoders are ideally suited for standard applications in heavy industry and offer a large variety of versions and attachment solutions.t



Extremely robust and durable incremental rotary encoders

For standard, main and auxiliary drives, e.g. in steel and rolling mills, mining, ports and cranes

Hollow shafts up to ? 25 mm, solid shafts up to ? 14 mm (flange or foot mounting)

Up to 1 million pulses HTL / TTL, up to 2500 sine periods

Degree of protection up to IP66 / IP67, temperature range from -40 to +100 oC

High flexibility due to a wide variety of device and signal options

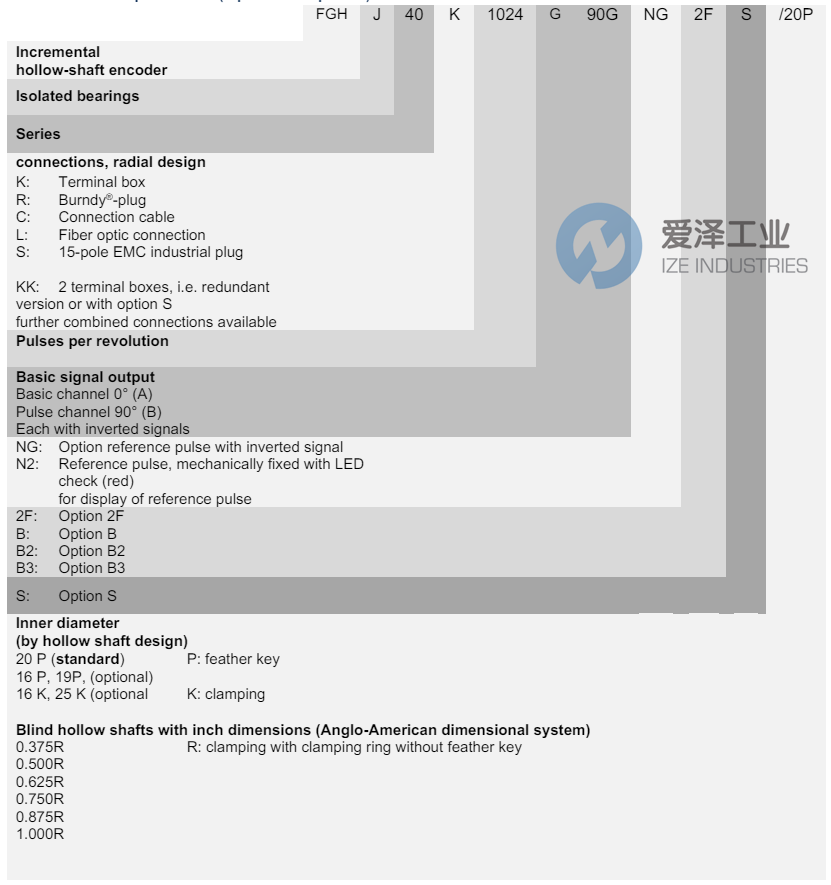

G-HUBNER編碼器FGH系列選型

G-HUBNER編碼器FGHJ40K-1024G-90G-NG20P 愛澤工業 ize-industries (2).png



G-HUBNER編碼器FG(HJ) 40系列其他常用型號:

G-HUBNER FGHJ 40 KK-2500G-90G-NG-S/20P

G-HUBNER FGHJ 40K-1024G-90G/20P

G-HUBNER FGHJ 40 K-2048G-90G-NG/20P

G-HUBNER FGHJ40K-1024G-90G-NG/20P



G-HUBNER ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY



愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。



如果有任何關于G-HUBNER 編碼器FGHJ40K-1024G-90G-NG/20P的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。



If you have any question for G-HUBNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.


G-HUBNER編碼器FG(HJ) 40系列FGHJ40K-1024G-90G-NG/20P技術參數及選型
