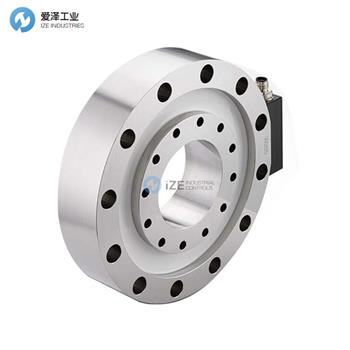

X-SENSORS應變傳感器XC-170系列介紹
Technical specifications | |
MEASURING RANGE | 50 – 3000 kN (customizable) |
DESIGN / FORCE APPLICATION | Flange mounting |
DIRECTION OF FORCE | tensile and compressive force |
FEATURE | For OEM applications |
(K) MEASURING RANGE (IN KN) | |
(K) INPUT SENSITIVITY (IN MV/V) | 1.3 |
(K) OUTPUT SIGNAL | ± 10 V, 0-10 V, 4-12-20 mA, 4-20 mA |
(K) APPLICATION | dynamic |
(K) ELECTRICAL CONNECTION | M12 – 5pol. Plug |
(K) DESIGN | annular, through hole |
(K) MOUNTING POSITION | Closing force and mold protection, Injection pressure behind the screw conveyor, Measurement in the power flow, Reference measurement of the pressing force |
X-SENSORS應變傳感器XC-170系列介紹
For accurate measurements with specific measuring ranges
The XC-170 series Force Sensors measure the injection pressure in all-electric injection moulding machines behind the screw conveyor. The Sensor is very linear, zero point stable and has an overload resistance of 150 % of the final value. The Sensors are very temperature stable and allow maximum consistency of the shot weight. The solid steel housing and the tight design (IP 54) guarantee problem-free operation, even under difficult environmental conditions.
The Force Sensors have either a passive strain gauge full bridge output or an amplified ± 10 V or 4…20 mA output signal. The measuring range can be adapted exactly to the required injection force. The dimensions and hole pattern can also be specifically adapted to your application and to the required force range.
用于在特定測量范圍內進行精確測量
XC-170 系列力傳感器測量螺旋輸送機后面全電動注塑機的注射壓力。 該傳感器非常線性、零點穩定，并且具有最終值 150% 的過載電阻。 傳感器對溫度非常穩定，并且可以實現注射重量的最大一致性。 堅固的鋼制外殼和緊湊的設計 (IP 54) 保證即使在惡劣的環境條件下也能無問題運行。
力傳感器具有無源應變儀全橋輸出或放大的 ± 10 V 或 4...20 mA 輸出信號。 測量范圍可以完全適應所需的注射力。 尺寸和孔型也可以專門適應您的應用和所需的力范圍。
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號
X-SENSORS XC-172-W104
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
愛澤工業為用戶提供咨詢、資料上門、輔助選型，售后安裝服務，操作人員免費培訓等服務。
歡迎來電索取樣本資料和產品信息。
如果有任何關于X-SENSORS應變傳感器XC-172-W104的疑問，請隨時與我們聯系，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.agcjj.cn.
X-SENSORS應變傳感器XC-170系列XC-172-W104介紹
