ENDA溫度控制器ET2412系列技術參數
Environmental Conditions | |
Ambient/Storage Temperature | 0...50 oC / -25...70 oC |
Relative Humidity | 80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C |
Protection Degree | According to EN 60529 Front panel: IP62, Rear panel: IP20 |
Height | Max. 2000m |
Electrical Characteristics | |
Supply | 230V AC +10% -20% 50/60Hz or 12/24V AC/DC ±10% |
Power Consumption | 3VA |
External Connections | Screw-terminals |
Scale | -60.0...150.0 °C |
Accuracy | ± 1% (of full scale) ± 1 digit |
Line Resistance | Max. 100ohm |
Output | |
C1 output | 250V AC, 8A (for resistive load), NO+NC control output |
A1 output | 250V AC, 8A (for resistive load), NO control output |
Life Expectancy | Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load) |
Control | |
Control Type | Single set-point and alarm control |
Control Algorithm | On-Off |
A/D converter | 12 bit |
Sampling Time | 100ms |
Hysteresis | Adjustable between 0.1 and 20.0 °C/F |
Housing | |
Mounting Method | Panel mounting |
Dimensions | W77xH35xD61 mm |
Weight | Approx. 215g (after packaging) |
Enclosure Material | Self extinguishing plastics |
ENDA溫度控制器介紹

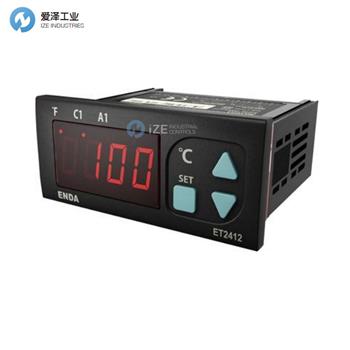

ET2412
Single NTC probe input
Offset value can be adjusted for NTC probe
Relay output for cooling or heating control
Relay output for Alarm
Selectable independent, deviation or band alarm
In case of sensor failure, relay state can be configured as On or Off
Upper and lower limits of the setpoint can be adjusted
Temperature unit can be selected as °C or °F
CE marked according to European Norms
ET2412
單NTC 探頭輸入
NTC探頭的偏置值可調整
用于冷卻或加熱控制的繼電器輸出
報警繼電器輸出
可選擇獨立、偏差或帶狀報警
如果傳感器發生故障，繼電器狀態可配置為“開”或“關”
設定值的上限和下限可以調整
溫度單位可選擇°C或°F
符合歐洲規范的CE標志
ENDA溫度控制器其他常用型號：
ENDA ET2412-230-08
ENDA Temperature Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ENDA溫度控制器ET2412-230-08的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ENDA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
ENDA溫度控制器ET2412系列ET2412-230-08技術參數及介紹
