FLOMEC流量計TMT004P技術參數
Specifications | |
TMT004P | |
Flow range - {LPH} Litres/hour | 15 -390 |
- {GPH} USGal/hour | 2.4 -100 |
Linearity (full scale) | 1.50% |
Repeatability | 0.10% |
Temperature range | -20 -125°C ( -4 -260° F) |
Maximum pressure | 10 bar (145 psi) |
Recommended filter | 80 microns (185 mesh) |
Electrical | |
Pulse Output Resolution Pulse per litre (pulse per Gallon) | 2100（555） |
Operating Voltage | 5 -24vDC |
Output Type | Hall Effect, 3 wire open collector, 5 -24vDC, lOmA max |
Cable length | 1.8 meters |
FLOMEC流量計TMT系列介紹

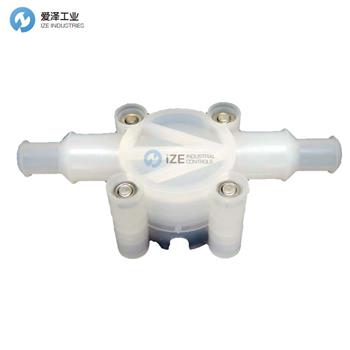

FLOMEC? TMT Single Jet Flow Meter is a chemically resistant and reliable way to measure small flow rates. The flow meter has totally non-metallic wetted materials comprising of a precision PVDF body and turbine rotating freely on hard wearing sapphire bearings with ceramic magnets that senses flow with a robust Hall Effect output. The replaceable single jet comes in six apertures, allowing the same rugged body size to be used over 6 different flow ranges.
Features/ Benefits
6 different flow ranges from 3L/hr to 900 L/hr
Low cost
Chemically resistant
Robust and reliable
Simple installation
ightweight and compact
General Specifications
8mm & 12mm barbed connections for all
flow ranges
Compact footprint, 75mm long
Suitable For:
Acids and bases
Oxidisers such as chlorine and sodium hypochlorite
Demineralised water
FLOMEC? TMT 單射流流量計是一種耐化學腐蝕且可靠的小流量測量工具。 流量計采用完全非金屬接液材料，包括精密 PVDF 主體和渦輪機，渦輪機在耐磨藍寶石軸承上自由旋轉，陶瓷磁鐵可通過強大的霍爾效應輸出感應流量。 可更換的單噴嘴有六個孔，允許在6個不同的流量范圍內使用相同的堅固機身尺寸。
特點與優勢
6 種不同的流量范圍，從 3 升/小時到 900 升/小時
低成本
耐化學性
堅固可靠
安裝簡單
輕巧緊湊
一般規格
8 毫米和 12 毫米倒鉤連接適用于所有
流量范圍
占地面積小，長75毫米
適用于：
酸和堿
氧化劑，如氯和次氯酸鈉
FLOMEC流量計TMT系列其他常用型號：
FLOMEC TMT001P
FLOMEC TMT002P
FLOMEC TMT003P
FLOMEC TMT004P
FLOMEC TMT005P
FLOMEC TMT006P
FLOMEC flow meter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLOMEC流量計TMT004P的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLOMEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.cTMT / browse our website:www.ize-industries.cTMT.
