MOLYKOTE潤滑脂G68 5KG產品參數

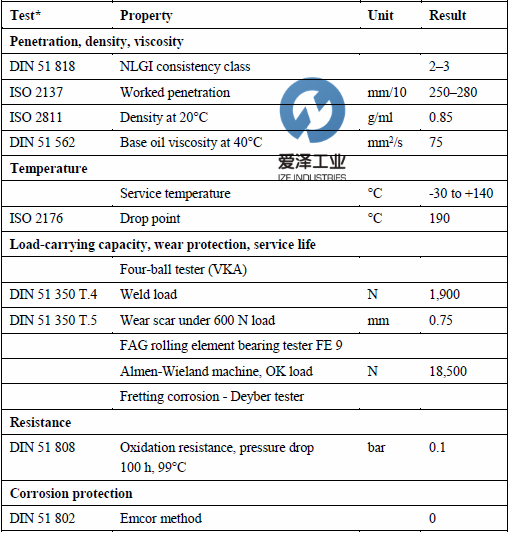

Specification | |||
Penetration, density, viscosity | |||
DIN 51 818 | NLGI consistency class | 2-3 | |
ISO 2137 | Worked penetration | mm/10 | 250-280 |
ISO 2811 | Density at 20°C | g/ml | 0.85 |
DIN 51 562 | Base oil viscosity at 40°C | mm2/s | 75 |
Temperature | |||
Service temperature | °C | -30 to +140 | |
ISO 2176 | Drop point | °C | 190 |
Load-carrying capacity, wear protection, service life | |||
Four-ball tester (VKA) | |||
DIN 51 350 T.4 | Weld load | N | 1900 |
DIN 51 350 T.5 | Wear scar under 600N load | mm | 0.75 |
FAG rolling element bearing tester FE 9 | |||
Almen-Wieland machine, OK load | N | 18500 | |
Fretting corrosion - Deyber tester | |||
Resistance | |||
DIN 51 808 | Oxidation resistance, pressure drop 100h, | bar | 0.1 |
99°C | |||
Corrosion protection | |||
DIN 51 802 | Emcor method | 0 | |
Coefficient of friction | |||
Steel ball against plastic surface (POM) | |||
? ball = 12.7mm, load = 6.3N, v =10mm/s, 24h | μ | 0.014 | |
Oil separation | |||
DIN 51 817 Oil separation - standard test | % | 3.4 | |
Fed-Standard | 791-32-2 | ||
MOLYKOTE潤滑脂G68簡介
Molykote G68是一種高耐水性，低摩擦系數的塑料和鋼齒輪潤滑脂。這種先進材料由鋰皂，礦物油，聚α-烯烴，EP添加劑和固體潤滑劑組成。該產品主要用于電動牙刷和碎紙機的齒輪。它還與大多數塑料具有出色的相容性。
Molykote G68是一種米色的半合成潤滑脂。在20攝氏度下產品的密度為0.85克/ cc，使用溫度在-30至140攝氏度之間。根據國際標準化組織（ISO）2176，Molykote G-68的滴點為190攝氏度。動力學/運動粘度為75厘and，承載能力為1900 4球焊，N。該先進產品能夠用作潤滑塑料基材以及更先進的汽車和航空航天應用的簡單家用潤滑脂。它有25kg桶裝，5kg容器和1kg罐裝。
可以使用油脂槍，刷子，刮刀或自動潤滑裝置施加Molykote G 68。它也適用于中央潤滑系統的輸送。清潔接觸點并涂抹潤滑脂。由于彈性體和塑料質量的差異，建議MOLYKOTE-G-68對收縮，膨脹，應力裂紋形成以及硬度和強度的變化進行兼容性測試。創新產品不應與任何其他潤滑脂混合，因為它可能會改變潤滑特性，并且可能無法按其配制的方式執行。
Molykote G 68 is a high water resistance, low coefficient of friction, plastic and steel gear grease. This advanced material is composed of lithium soap, mineral oil, polyalphaolefine, EP additives and solid lubricants. The product is primarily used in gears of electrical tooth brushes and paper shredders. It also has excellent compatibility with most plastics.
Molykote G 68 is a semi-synthetic grease that is beige in color. The density of the product at 20 degrees Celsius is .85 grams per cc and the service temperature is between -30 to 140 degrees Celsius. In accordance to the International Organization for Standardization (ISO) 2176 the dropping point of Molykote G-68 is at 190 degrees Celsius. Kinetic/ kinematic viscosity is 75 centistokes and the load carrying capacity is 1900 4 ball weld, N. This advanced product is capable of for being used as a simple household grease for lubricating plastic substrates as well as in more advanced automotive and aerospace applications. It is available in 25kg pails, 5kg containers and in 1kg cans.
Molykote G 68 may be applied by using a grease-gun, brush, spatula, or an automatic lubricating device. It is also suitable for delivery in a central lubricating system. Clean points of contact and apply the lubricating grease. Because of a variation in quality of elastomers and plastics, it is recommended have a Molykote-G-68compatibility test carried out for shrinkage, swelling, stress-crack formation and changes in hardness and strength. The innovative product should not be mixed with any other grease because it may change the characteristics lubrication and it may not perform the way that it was formulated to perform.
MOLYKOTE潤滑脂G68技術參數
MOLYKOTE潤滑脂G68
